10 Tons Heavy Duty Rotary Welding Positioner Turntable

Ask Lasest Price
Brand Name :	Weldsuccess
Model Number :	HBJ-100
Certification :	ISO/CE/CO
Price :	Negotiation
Payment Terms :	TT / 30 % payment in advance
Supply Ability :	5 sets per month
Delivery Time :	20 working days after received your payment

Add to Cart

Product Details
Company Profile

10 Tons Heavy Duty Rotary Welding Positioner Turntable

10Tons Rotary Welding Positioner, Heavy Duty Rotary And Tiltling Welding Turn Table

More products pics.pdf

The welding positioner, also is called welding positioning equipment, mainly used for some special structures, construction machines, small round workpieces, and more. And it mainly consists of a working table, turning device, overturning device, electricity-conducting device, stander and electric cabinet. Its working table is driven by the turning device with 6 T-style slots to ensure workpieces strictly fixed on the working table.

Here Below is 100Tons Rotary Welding Positioner Paremeter For Your Reference

Model	HBJ-100
Load capacity	10000kg maximum
Table diameter	2000mm
Tilting angle	0-90°/ 0-120°
Tilting speed	0.14 rpm
Tilting power	4 kw
Rotation speed	0.05-0.2 rpm
Rotation power	3 kw
Control way	Remote hand control + Foot pedal
Input Voltage	110V ~ 575V Single/3 Phase 50/60Hz
Certificate	CE approval

10000KG Welding Positioner

Model: HBJ-100

Electric gear tilt positioner with 0-90°tilting algle
Remote hand control box & foot pedal control.
Stepless adjustable speed of the table rotation.
Top-class electronic components from Schneider.
This kind welding positioner mainly consists of mainframe, worktable, overturing unit, rotation unit, and electric control part.
100% new from original manufacturer

Rotary And Tiltling Welding Turn Table Spare Parts Brand

Rotary Turn Table Positioner Motor is from Invertek

Welding Positioners Electric system is from Schneider

Rotary Pipe Welding Positioners Reducer is from China brand

Rotary Welding Positioner Inverter is from Danfoss

CE Certification

Welding Positioners Application:

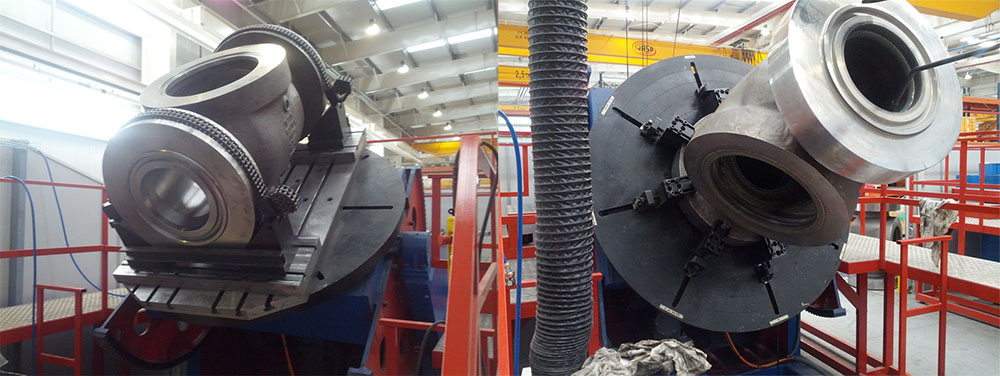

1. Pipe welding positioners are used for diverse applications ranging from pipe spooling to positioning of very large cumbersome parts such as chassis components or structural steel.

2. Welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings.

3. Along with welding turntables, pipe turning positioners are particularly useful when rotating or positioning workpieces with large offset loads.

4. We design and manufacture custom pipe welding positioners and welding rotating tables that suit a variety of pipe handling applications.

Rotary And Tiltling Welding Positioner Features

1. Elbow welding positioner is mainly composed of worktable rotating unit and tilting unit and electric control system .

2. By motorized tilting and rotating, elbow welding positioner could make the work-piece at ideal work position .

3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .

4. Using remote control box to realize the remote operation of work table, also can connect with operating machines to realize linkage operation.

5. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center .

6. Application industry including pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .

THIS ONE WAS FOR AUSTRALIA, SO JUST SEND YOUR INQUIRY NOW.
