LHC3030 Automatic Arc Cloumn Boom manipulator welding With Hand Box And Foot Pedal

Ask Lasest Price
Brand Name :	Weldsuccess
Model Number :	LHC 3030
Certification :	ISO / CE / CO
Price :	Negotiation
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	3 sets per month
Delivery Time :	25 Days

Add to Cart

Product Details
Company Profile

LHC3030 Automatic Arc Cloumn Boom manipulator welding With Hand Box And Foot Pedal

LHC3030 Automatic Arc Cloumn Boom Welding Manipulators, With Hand Box And Foot Pedal

WELDSUCCESS PRODUCTS.pdf

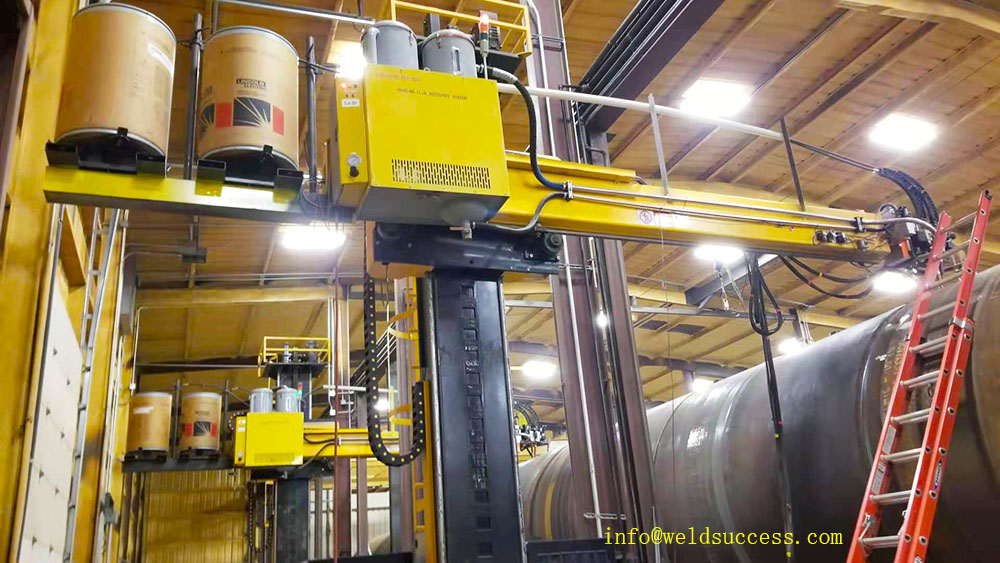

It is the welding assistance equipment, which machine head is equipped on the top of the boom, can be elevated and retracted horizontal free by the boom, also rotated by ± 180o, Column boom welding manipulator is used to hold the welding torch instead of welder. It is a platform integrating all welding related components.

Some Type Welding Manipualtor Specifications

Model	LHC-3030	LHC-4040	LHC-5050	LHC-6060
Effective Vertical Lifting Stroke of Boom (mm)	3000	4000	5000	6000
Effective Horizontal Retracting Stroke of Boom (mm)	3000	4000	5000	6000
Column Rotation Way (rpm)	□ Stationary □ Manual □ Motorized(1.5/3)
Trolley Traveling Way (mm/min)	□ Stationary □ Manual □ Motorized(0.1)
Vertical boom travel speed	1000mm/min
Horizontal boom travel speed	120~1200mm/min
Rotation Way	Customized
Column Rotation Angle (°)	□ Stationary □ ±180°
Option :	□ Seam Tracker □ Flux recovery machine
	Welding Source □ Chinese □ Lincoln Brand

Automatic Welding Manipulator Description

1. Auto welding the tank straight seam and circle seam.

2. Seam tracker and Monitor to ensure the welding effect well.

3. Flux recovery machine is also available.

4. Voltage 110V - 600V all available

5. Hand control box more convenient

6. We also supply the tank turning rotators.

Spare Parts Brand On Welding Manipulators

1. Column boom welding manipulator inverter is from Danfoss

2. Automatic welding welder Reducer is from China brand

3. Pipe Welding Manipulator Electric system is from Schneider

4. welding manipulator Motor is from Invertek

Control :

Applications:

To weld the inner seam and outside seam automatically.
Auto Flux recovery machine / seam teacker / monitor are all available.
Movable model is available.

Productive Process

1. Welding manipulators are the automatic welding equipment composed together with welding power.

2. It can be used together with welding rotators or welding positioners,and widely used in industries as boiler, pressure vessel, petro chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.

3. It features in advanced structure complete function easy operation to make sure of welding quality.

When you send us the inquiry, please advise us your single tank diameter and length.

Door to door price is also availble. Including your import tax.

NOW PLEASE SENS US YOUR INQUIRY.
