200T Heavy Duty Conventional Tank Turning Rolls, Steel Wheel
Welding Rotator Stand
WELDSUCCESS
PRODUCTS.pdf
Conventional welding rotator is the device for special purpose adopted to weld metal cylinder especially pressure vessel.
Tank Turning Rolls Welding Rotator Description
1. Our welding rollers pack One drive piece roller & one idler
piece roller together as one set for sale.
2.Remote hand control, Radio hand control & Foot pedal control are
all avaialble.
3.Top-class electronic components from Schneider to ensure long
time using life.
4.Our tank tuning rolls' drive rotation speed is in digital
readout.
5.100% new from original manufacturer – WUXI SUCCESS MACHINERY
EQUIPMENT CO., LTD.
6. If your single pipe length more than 8 meter, we suggest you
choose one drive roller and two idler rollers to support.
Here Below is 200t Conventional Welding Rotator Specification:
| Model | CR-200 |
| Load capacity - Drive | 100 tons maximum |
| Load capacity - Idler | 100tons maximum |
| Rotation capacity | 200 tons maximum |
| Vessels diameter | Min. 800mm ~ Max.5000mm |
| Rotation speed | 100~1000 mm/min VFD |
| Rotation power | 2*4kw with fan cooling |
| Roller wheels | Steel |
| Control way | Remote hand control + Foot pedal |
| Input Voltage | 110V ~ 575V Single/3 Phase 50/60Hz |
| Certificate | CE approval |
Feature of pipe welding rollers :
1. The pipe welding rollers product has following different
series,say, the self-alignment, the adjustable, the vehicle, the
tilting and the anti-drift types.
2. The series conventional pipe welding rollers stand is able to
adopt to various diameter of job, by adjust the center distance of
rollers, via reserved screw holes or lead screw.
3. Depends on different application, the roller surface has three
types,PU/RUBBER/STEEL WHEEL
4. The pipe welding turning roller machine can joint control with
other equipments.
Conventional Tank Turning Rolls Welding Rotator Spare Part:
| 1. Our welding roller Inverter is from Danfoss / Yaskawa |
| 2. Our welding Electric system is from Schneider |
| 3. Our Tank rolls Reducer is from China brand |
| 4. Our welding rotator Motor is from Invertek |
| 5. Steel or PU roller which can ensure a long time using (at least 2 years). |
Application:
Used to weld, polish and assemble the cylinder-shells, and to line
the shells with rubber. Welding Rotator major used in cylinder
welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ;
Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ;
Boiler ; Pipe system&Steel works etc.

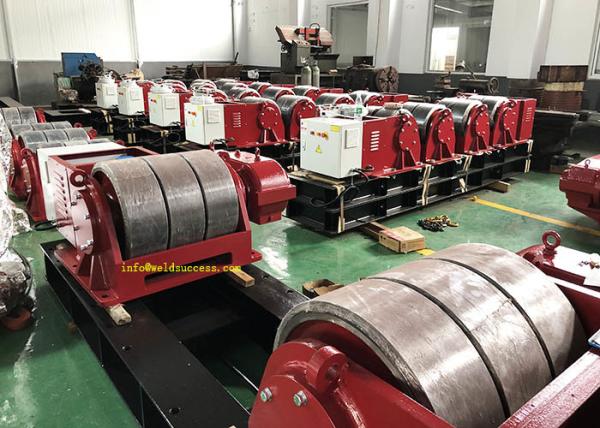

Detail Images:
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
|
|
