Wuxi WeldSuccess Automation Equipment CO., LTD WhatsApp : 0086 15261660915 Email: info@weldsuccess.com
10 Years
| Ask Lasest Price | |
| Brand Name : | Weldsuccess |
| Model Number : | LHC 4040 |
| Certification : | ISO / CE / CO |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 3 sets per month |
| Delivery Time : | 25 Days |

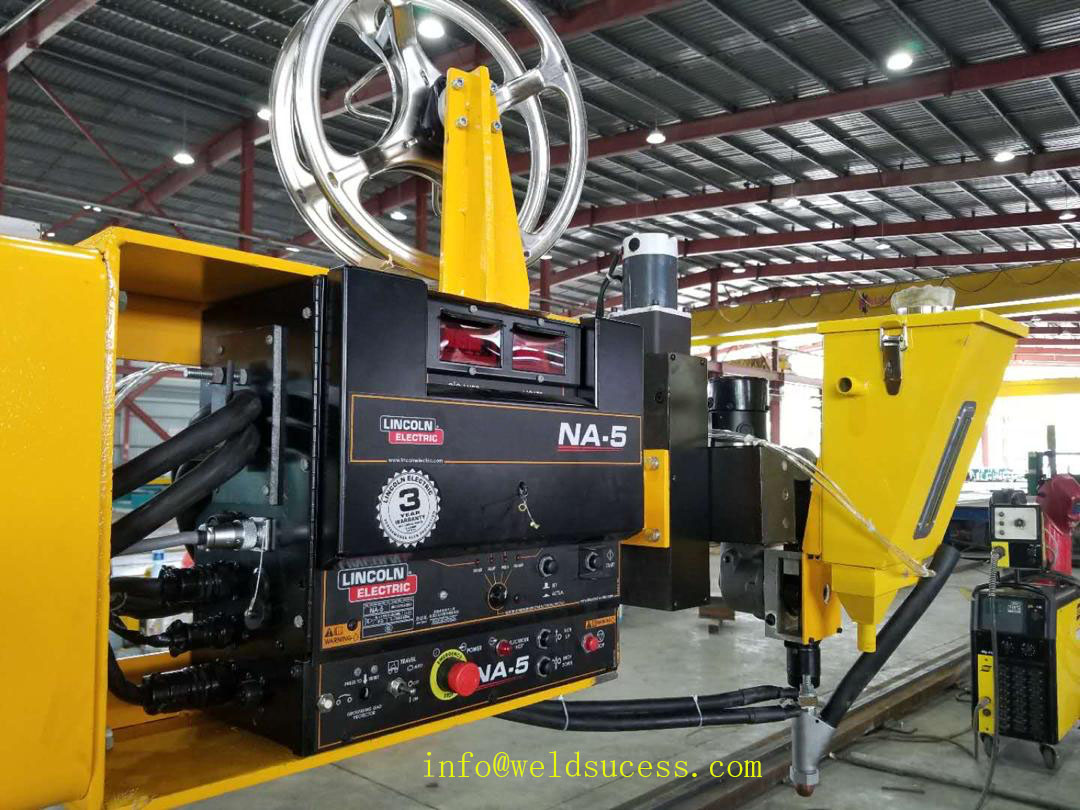

Automatic Welding Manipulator Joint Welding Rotator, Hand Box And Foot Pedal Control
Automatic Welding Manipulator Description
1. Auto welding the tank straight seam and circle seam.
2. Seam tracker and Monitor to ensure the welding effect well.
3. Flux recovery machine is also available.
4. Voltage 110V - 600V all available
5. Hand control box more convenient
6. We also supply the tank turning rotators.
Welding Manipualtor Specifications
It is the welding assistance equipment, which machine head is equipped on the top of the boom, can be elevated and retracted horizontal free by the boom, also rotated by ± 180o
Model | LHC-3030 | LHC-3040 | LHC-4050 | LHC-5060 |
Effective Vertical Lifting Stroke of Boom (mm) | 3000 | 3000 | 4000 | 5000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 3000 | 4000 | 5000 | 6000 |
Vertical boom travel speed | 1 | |||
Horizontal boom travel speed | 0.12-1.2 | |||
| Rotation Way | Customized | |||
Column Rotation Angle (°) | □ Stationary □ ±180° | |||
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) | |||
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) | |||
Option : | □ Seam Tracker □ Flux recovery machine | |||
Welding Source □ Chinese □ Lincoln Brand | ||||
Column Boom Welding Manipulators Features:
1. Inside, outside,longitudinal & circumferential welding applications.
2. With motorized cross slides to adjust the welding gun position.
3. Options for seam tracker,monitor & flux recovery machine.
4. SAW,MIG welding head are all available.
5. Using together with pipe turning rolls.
6. Top-class electronic components from Schneider.
7. 100% new from original manufacturer
8. CE marking
Spare Parts Brand On Welding Manipulators
Column boom inverter is from Danfoss |
Automatic welding manipulator Motor is from Invertek |
Column boom welder Reducer is from China brand |
Pipe Welding ManipulatorElectric system is from Schneider |
How To Installate Welding Manipulator
1. Welding Manipulators is easy to install according to our installation drawings support.
2. Our engineers are available to supply you the door to door installation service.
Sale of services For Welding Manipulator
1. We promise honest and fair, it's our pleasure to serve you as
your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly
implement the terms of contract.
3. We can make the fullu welding equipments according to your request.
4. Just advise us if you have any special request.
our workshop
When you send us the inquiry, please advise us your single tank diameter and length.
Door to door price is also availble. Including your import tax.
NOW PLEASE SENS US YOUR INQUIRY.
|
|
