Wuxi WeldSuccess Automation Equipment CO., LTD WhatsApp : 0086 15261660915 Email: info@weldsuccess.com
10 Years
| Ask Lasest Price | |
| Brand Name : | Weldsuccess |
| Model Number : | LHC 3030 |
| Certification : | ISO / CE / CO |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 3 sets per month |
| Delivery Time : | 25 Days |

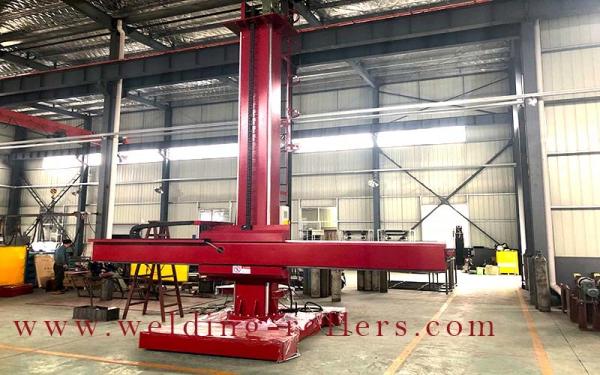

LHC 3030 Column And Boom Welding Manipulator For Pressure Vessels And Automational Welding
3x3 Welding Manipulator
Model: LHC-3X3
Welding Manipualtor Specifications
Model | LHC-3030 | LHC-3040 | LHC-4050 | LHC-5060 |
Effective Vertical Lifting Stroke of Boom (mm) | 3000 | 3000 | 4000 | 5000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 3000 | 4000 | 5000 | 6000 |
Boom Lifting speed (mm/min) | 1 | |||
Boom Retracting speed (mm/min) | 0.12-1.2 | |||
Column Rotation Angle (°) | □ Stationary □ ±180° | |||
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) | |||
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) | |||
Option : | □ Seam Tracker □ Flux recovery machine | |||
Welding Source □ Chinese □ Lincoln Brand | ||||
Spare Parts Brand On Welding Manipulators
Sale of services For Welding Manipulator
1. We promise honest and fair, it's our pleasure to serve you as
your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly
implement the terms of contract.
3. We can make the fullu welding equipments according to your request.
4. Just advise us if you have any special request.
After-sales service For Welding Manipulator
1. Our welding manipulator products for one year warranty and life
long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts.
How To Installate Welding Manipulator
1. Welding Manipulators is easy to install according to our installation drawings support.
2. Our engineers are available to supply you the door to door installation service.
our workshop
When you send us the inquiry, please advise us your single tank diameter and length.
Door to door price is also availble. Including your import tax.
NOW PLEASE SENS US YOUR INQUIRY.
|
|
