1000kg Rotary And Tiltling Welding Turn Table , Pipe Welding Positioner

WELDSUCCESS AUTOMATION EQUIPMENT (WUXI) CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 1000kg Rotary And Tiltling Welding Turn Table , Pipe Welding Positioner from wholesalers

    Buy cheap 1000kg Rotary And Tiltling Welding Turn Table , Pipe Welding Positioner from wholesalers
    • Buy cheap 1000kg Rotary And Tiltling Welding Turn Table , Pipe Welding Positioner from wholesalers

    1000kg Rotary And Tiltling Welding Turn Table , Pipe Welding Positioner

    Ask Lasest Price
    Brand Name : Weldsuccess
    Model Number : HBJ-10
    Certification : ISO/CE/CO
    Price : Negotiation
    Payment Terms : TT / 30 % payment in advance
    Supply Ability : 5 sets per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

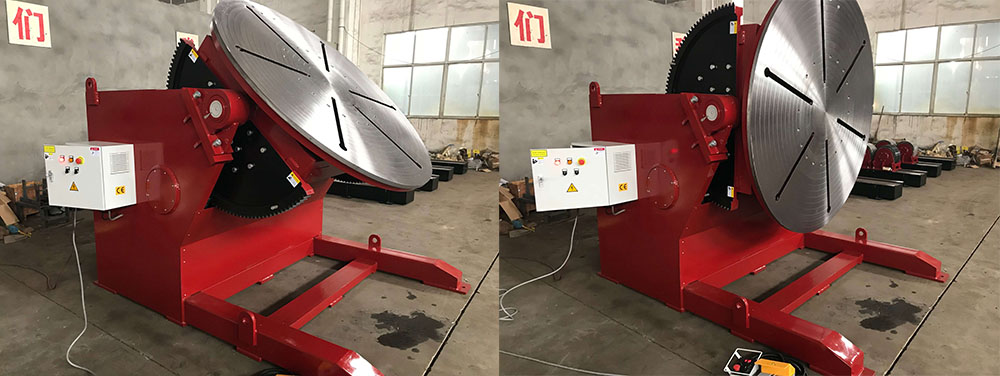

    1000kg Rotary And Tiltling Welding Turn Table , Pipe Welding Positioner

    1000kg Rotary And Tiltling Welding Turn Table, Pipe Welding Positioner

    More products pics.pdf


    Feature:
    1. This machine is used to easy welding, can mach with welding machine, welding manipulator etc.
    2. Positioner can tilting from 0 to 120°, rotating 360° by VFD.
    3. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as per your requirement
    4. This machine is controled by remote-control box, optional: wireless remote control, foot pedal control
    5. Other more special requiements pease contact us


    1000KG Welding Turn Table Welding Positioner

    ModelHBJ-10
    Load capacity1000kg maximum
    Table diameter1200mm
    Tilting angle0-90°/ 0-120°
    Tilting speed0.67 rpm
    Tilting power1.5 kw
    Rotation speed0.05-0.5 rpm
    Rotation power1.1 kw
    Control wayRemote hand control + Foot pedal
    Input Voltage110V ~ 575V Single/3 Phase 50/60Hz
    CertificateCE approval

    Pipe Welding Positioners Spare Parts Brand

    • Our welding positioners Inverter is from Danfoss / Yaskawa
    • Our welding turntable Motor is from Invertek
    • Our rotary welding positioners Reducer is from China brand
    • Our welding Electric system is from Schneider.

    Rotary And Tiltling Welding Turn Table Brif Description

    1. Electric gear tilt positioner with 0-90°tilting angle
    2. Remote hand control box & foot pedal control.
    3. Stepless adjustable speed of the table rotation.
    4. Top-class electronic components from Schneider.
    5. 100% new from original manufacturer
    6. CE marking


    application:

    1. Pressure vessels
    2. Pipe manufacturing industries
    3. Wind power fabrication
    4. Chemical & fuel storage tank fabrication
    5. Any heavy cylindrical job


    Welding Positioner, Welding Turn Table was widely used:

    1. Pipe welding positioners are used for diverse applications ranging from pipe spooling to positioning of very large cumbersome parts such as chassis components or structural steel.
    2. Welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings.
    3. Along with welding turntables, pipe turning positioners are particularly useful when rotating or positioning workpieces with large offset loads.
    4. We design and manufacture custom pipe welding positioners and welding rotating tables that suit a variety of pipe handling applications.


    Sale And After-sales services

    1. We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.
    2. We guarantee punctuality, quality and quantities strictly implement the terms of contract.
    3. We can make the fullu welding equipments according to your request.
    4. Just advise us if you have any special request.

    5. Our products for one year warranty and life long maintenance.
    6. 24-hour telephone service.
    7. A large stock of components and parts, easily-worn parts.


    THIS ONE WAS FOR AUSTRALIA, SO JUST SEND YOUR INQUIRY NOW.
