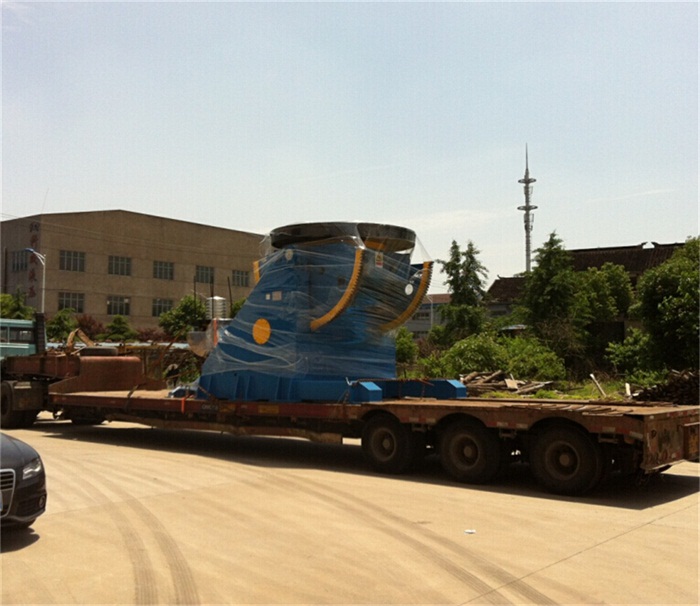

50 T Capacity Tilting And Rotation Welding Turn Table With 4000 mm Table Diameter More products pics.pdf
Here Below is 50T Welding Turn Table Description
1. The worktable could be rotating 360° tilting 90° allowing work
piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and
motor-driven speed regulation by tilting from which customers can
choose in line with operational requirements.
3. It's easy to control with electric control system composed of
electric cabinet and manual control panel.
4. This equipment can coordinate with different automatic welding and manual welding, pipe longitudinal
joint, and end welding, all kinds axis, tray, pipe welding, which with compact structure, small size, beauty
appearance, light, and easy for operation.
Here Below is Welding Turn Table Specification
Model | HBJ - 50 | HBJ-100 | HBJ-150 | HBJ-200 | HBJ-500 |
Max Capacity | 5 T | 10 T | 15 T | 20 T | 50 T |
Table Diameter (mm) | 1500 | 2000 | 2200 | 2500 | 4000 |
Rotation Power (kw) | 3 | 4 | 11 | ||
Rotation Speed (rpm) | 0.05 - 0.5 | 0.04-0.4 | |||
Tilting Power (kw) | 3 | 4 | 5.5 | 7.5 | 18.5 |
Tilting Angle (°) | 0 - 90 | ||||
Tilting Speed (kw) | 0.14 | 0.1 | |||
Option: | □ Foot Pedal □ Wireless Control □ Tilting Angle 120° | ||||
Our Welding Turn Table Competitive Advantage
1. Model from 100 kg to 50 T ,other model please contact us.
2. Welding Positioner can tilting from 0 to 120°, rotating 360° by
VFD control.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please
kindly let us know.
4. Controlled is remote-control box, optional foot switch
5. If customer need more special requirements ,we’ll study with our
engineer.
6. Color of the machine is according to the customers.
Supply Range
1. Welding turn table (including machine frame, worktable, etc) 1set
2. Electric control system (including electric control cabinet,remote control box and foot
3. Technical documents (with manual book, conformity certificate, packing list, etc) 1set
Installation and commissioning
1. Normally welding turn table is easy to installation, we will installtion well then package for delivery. Also we will supply you
all the details installation drawings.
2. If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
JUST SEND US EMAIL FOR DOOR TO DOOR PRICE.
|
|
