Self Aligning 5 Ton Pipe Welding Turning Rolls 0.75kw

Ask Lasest Price
Brand Name :	Weldsuccess
Model Number :	SAR-5
Certification :	ISO/CE/CO
Price :	Negotiation
Payment Terms :	L/C, D/P, T/T
Supply Ability :	5 Sets Per Month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

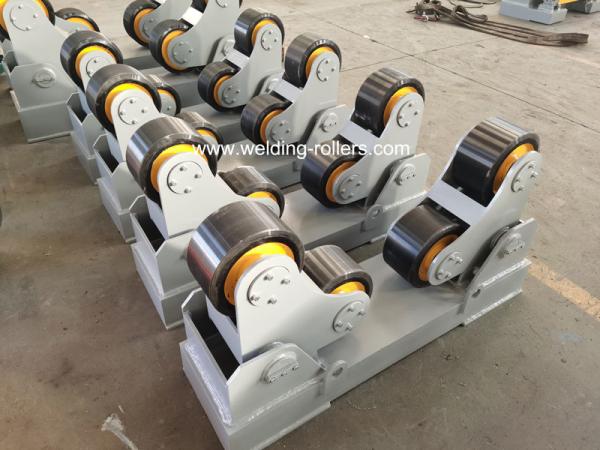

Self Aligning 5 Ton Pipe Welding Turning Rolls 0.75kw

Pipe Welding Rotator,Pipe Rotator For Welding With

Product Description:

1.The vessel diameter range lies within 250-2300 mm .

2.One set powered / One set idler / Electric control system.

3.Customers can customize 5 ton self - aligning welding rotators to their specifications.

4.5 ton Self - aligning welding rotator can controlled by handbox and foot pedal.

5.Rubber wheel or steel wheel following your repuire

6.Self - aligning welding rotator is easy to operate.

Self Aligning 5 Ton Pipe Welding Turning Rolls 0.75kw

Features:

1. The pipe welding rollers product has following different series,say, the self-alignment, the adjustable, the vehicle, the tilting and the anti-drift types.

2. The series conventional pipe welding rollers stand is able to adopt to various diameter of job, by adjust the center distance of rollers, via reserved screw holes or lead screw.

3. Depends on different application, the roller surface has three types,PU/RUBBER/STEEL WHEEL.

4. The pipe welding turning roller machine can joint control with other equipments.

Technical Parameters:

Model	HGZ-5
Turning Capacity	5 ton maximum
Drive Load Capacity	2.5 ton maximum
Idler Load Capacity	2.5 ton maximum
Adjust Way	Self aliging roller
Motor Power	0.75KW
Vessel Diameter	250~2300 mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	PU
Roller size	Ø250*140mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 8m cable
Color	Customized
Warranty	One Year

Applications:

1. Pressure vessel;

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job

Support and Services:

1. We offer a one-year warranty on your products.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1. The Pipe Welding Rotator will be securely packaged and shipped in a wooden crate.

2. Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

4. Seaway is the most common transportation way for oversea trading.

5. Depends on your location, combined transport by rail and sea is also an option.

6. Certainly railway transportation is also acceptable if it is the most suitable approach.

FAQ:

Q1: What is your product name?
A1: Our product name is Weldsuccess Pipe Welding Roller.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P, T/T. The packing is wooden case and the delivery time is 15 days. We can supply 5 sets per month.
