Product Description:

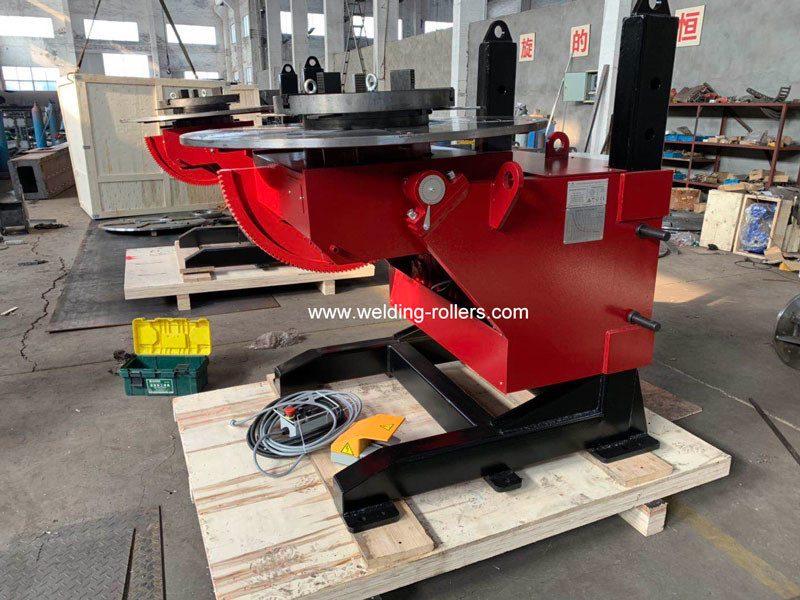

1. Pipe welding positioners is mainly composed of worktable
rotating and tilting unit and electric control system .
2. It has powered tilting and rotating, making the work-piece at
ideal position .
3. Worktable rotation is controlled by step-less frequency
conversion to achieve a best welding speed .
4. Rotate unit is driven by motor. It has a precise speed-adjusting
and reliable position.
5. Remote control box can realize the remote operation of work
bench, also can connect with operating machines to realize linkage
operation.
Features:
1. Pipe Welding Positioners is easy to get the perfect turning
speed via digital display showing on the control box.
2. Pipe Welding Positioners can tilting from 0 to 90 ° / 120 °,
rotating 360 ° by VFD control.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please
kindly let us know.
4. Controlled is hand remote-control box, optional foot switch
5. If customer need more special requirements ,we’ll study with our
engineer.
6. Color of the pipe wellding positioners is according to the
customers.
| Model | HBJ-06 |
|---|
Loading Capacity | 600 kg maximum |
Table diameter | 1000mm |
| Rotation motor | 0.75 kw |
| Rotation speed | 0.09-0.9rpm |
Tilting motor | 0.75 kw |
Tilting speed | 1.1 rpm |
Tilting angle | 0~90° |
| Max.Eccentric distance | 150mm |
Max.Gravity distance | 100mm |
Voltage | 380V ±10% 50Hz 3Phase |
| Control system | Remote control 8m cable |
Color | Customized |
Warranty | 1 Year |
Applications:
1.Pressure vessels
2.Pipe manufacturing industries
3.Wind power fabrication
4.Chemical & fuel storage tank fabrication
5.Any heavy cylindrical job
Support and Services:
1. We offer a one-year warranty on our Rotator Welding Positioner.
2. During this time, any issue proved because of the machine flaw
itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:
1. Seaway is the most common transportation way for oversea
trading.
2. Depends on your location, combined transport by rail and sea is
also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
4.All Package in wooden case for delivery to avoid damage.
Q1: What is the Brand Name of this product?
A1: The Brand Name of this product is Weldsuccess.Q2: Where is the Place of Origin of this product?
A2: The Place of Origin of this product is China.Q3: What is the Certification of this product?
A3: The Certification of this product is ISO/CE/CO.Q4: What is the Minimum Order Quantity of this product?
A4: The Minimum Order Quantity of this product is 1 set.Q5: How long is the Delivery Time of this product?
A5: The Delivery Time of this product is 20 working days after
received your payment.
