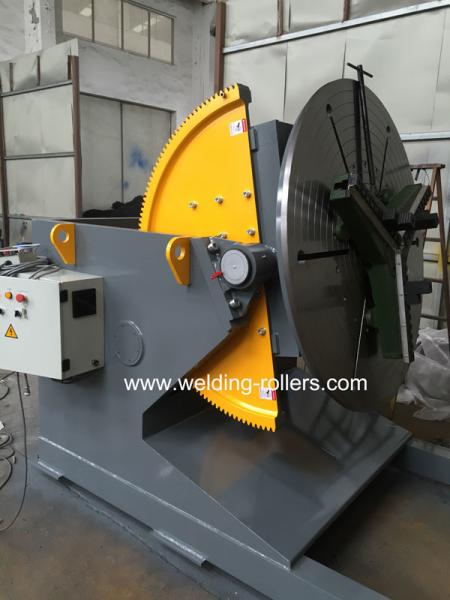

Product Description:
1. The worktable could be rotating 360°and tilting 90°to allow work
piece to be welded at the best position.
2. Variable Frequency control speed by rotating and motor-driven
speed regulation by tilting from which customers can choose in line
with operational requirements.
3. Can help for all types of manual welding and auto-welding.
4. Controlled by step-less frequency conversion.
Features:
1.With professional anti-electromagnet funtion.
2.Have self-locking function.
3.The worktable is tilted by motor, accurate and reliable
positioning.
4. The worktable adopts AC frenquency conversion speed, large range
and variable speed and high precision and weld at need position.
| Model | HBJ-30 |
|---|
Loading Capacity | 3000kg maximum |
Table diameter | 1400mm |
| Rotation motor | 1.1kw |
| Rotation speed | 0.05-0.5rpm |
Tilting motor | 2.2kw |
Tilting speed | 0.23rpm |
Tilting angle | 0~90° |
| Max.Eccentric distance | 200mm |
Max.Gravity distance | 200mm |
Voltage | 380V ±10% 50Hz 3Phase |
| Control system | Remote control 8m cable |
Color | Customized |
Warranty | 1 Year |
Applications:
1.Pressure vessels
2.Pipe manufacturing industries
3.Wind power fabrication
4.Chemical & fuel storage tank fabrication
5.Any heavy cylindrical job
Support and Services:
1. We provide one year guaranty period for the whole machine
quality.
2. During this time, any issue proved because of the machine flaw
itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:
1. Seaway is the most common transportation way for oversea
trading.
2. Depends on your location, combined transport by rail and sea is
also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
4.All Package in wooden case for delivery to avoid damage.
Q1: What is the Brand Name of this product?
A1: The Brand Name of this product is Weldsuccess.Q2: Where is the Place of Origin of this product?
A2: The Place of Origin of this product is China.Q3: What is the Certification of this product?
A3: The Certification of this product is ISO/CE/CO.Q4: What is the Minimum Order Quantity of this product?
A4: The Minimum Order Quantity of this product is 1 set.Q5: How long is the Delivery Time of this product?
A5: The Delivery Time of this product is 20 working days after
received your payment.
