20 Ton Conventional Pipe Welding Rollers Stands Bolt Adjustment For Wind Tower

Ask Lasest Price
Brand Name :	Weldsuccess
Model Number :	CR-20
Certification :	ISO/CE/CO
Price :	Negotiation
Payment Terms :	L/C, D/P, T/T
Supply Ability :	5 Sets Per Month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

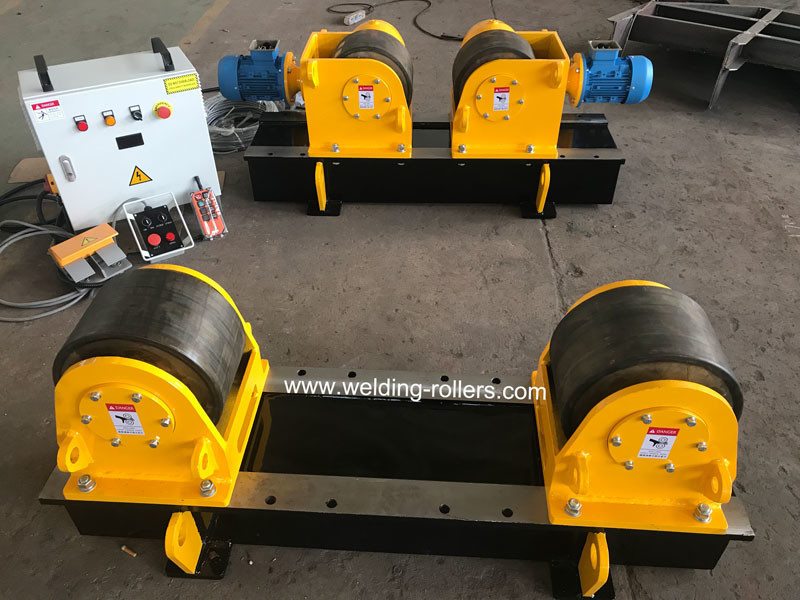

20 Ton Conventional Pipe Welding Rollers Stands Bolt Adjustment For Wind Tower

Product Description:

1.The vessel diameter range lies within 500-3500 mm .

2.One set powered / One set idler / Electric control system.

3.Customers can customize 20 ton self - aligning welding rotators to their specifications.

4.20 ton Self - aligning welding rotator can controlled by handbox and foot pedal.

5.Rubber wheel or steel wheel following your repuire

6.Self - aligning welding rotator is easy to operate.

20 Ton Conventional Pipe Welding Rollers Stands Bolt Adjustment For Wind Tower

Features:

1. Adjustable Roller position is very helpful in adjusting the rollers between the main body so that rollers of different diameter can be adjusted over the same rollers without even buying another size pipe roller.

2. A Stress analysis has been performed on the rigid body for the testing of the load capability of the frame on which the weight of the pipes depends on.

3.Polyurethane rollers are being used in this product because polyurethane rollers are weight resistant and can protect the surface of the pipes from being scratched up while rolling.

Technical Parameters:

Model	HGZ-20
Turning Capacity	20 ton maximum
Drive Load Capacity	10 ton maximum
Idler Load Capacity	10 ton maximum
Adjust Way	Self aliging roller
Motor Power	2*1.1KW
Vessel Diameter	500~3500 mm
Rotation Speed	100-1000mm/min
Speed control	Variable frequency driver
Roller wheels	PU
Roller size	Ø350*180mm
Voltage	380v±10% 50Hz 3Phase
Control system	Foot pedal 8m cable
Color	Customized
Warranty	One Year

Applications:

1. Pressure vessel;

2. Boiler industry

3. Chemical & fuel storage tank fabrication

4. Any heavy cylindrical job

5. Wind power fabrication

6. Storage tank fabrication

7. Pipe industry

8. For Welding, Polishing, Positioning, etc

Support and Services:

1. We provide 1 year guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

Packing and Shipping:

1.The Pipe Welding Rotator will be securely packaged and shipped in a wooden crate.

2.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.

3.Once it is shipped, it will be tracked with a tracking code to ensure that it is delivered safely and on time.

4. All boxes are labeled with the product name and number, and the shipper's contact information.

FAQ:

Q1: What is your product name?
A1: Our product name is Weldsuccess Pipe Welding Roller.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P, T/T. The packing is wooden case and the delivery time is 15 days. We can supply 5 sets per month.
