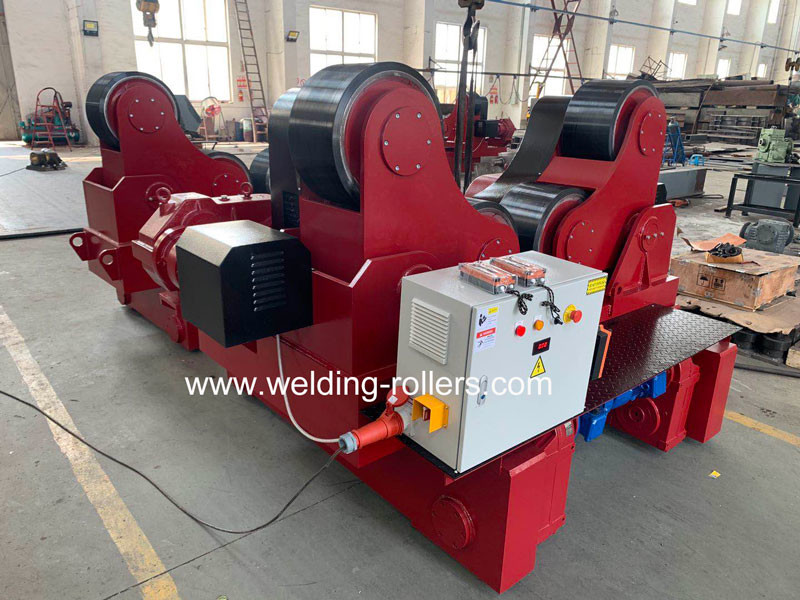

Product Description:
1. It will adjust the tank diameters automatically.
2. Wireless control is more convenient than remote control cable.
3. Can make work piece at optimum welding turning roller.
4. Low noise transmission and stable turning roller during working.
Features:
1. According to the customer’s requirements, the roller has three
forms: sub-rubber tire roller, steel wheels, steel and plastic
combination wheel; it can joint control with other equipments.
2. The roller is mainly used for the welding Polish rubber lining
and assembly of cylindrical roller shell, but also can assembly and
weld together with other tooling for the cone inequality diameter
rotary.
3. This product is widely used in wind power, pressure vessel,
petrochemical, pipeline, steel structure, boiler, shipbuilding,
welding repair industry.
Technical Parameters:
| Model | HGZ-40 |
|---|
Turning Capacity | 40 ton maximum |
Drive Load Capacity | 20 ton maximum |
Idler Load Capacity | 20 ton maximum |
Adjust Way | Self aliging roller |
Motor Power | 2*1.5KW |
Vessel Diameter | 600~4200 mm |
Rotation Speed | 100-1000mm/min |
Speed control | Variable frequency driver |
Roller wheels | PU |
Roller size | Ø400*200mm |
Voltage | 380v±10% 50Hz 3Phase |
Control system | Foot pedal 8m cable |
| Color | Customized |
Warranty | One Year |
Applications:
1. It is used to weld, polish and assemble the cylinder-vessel .
2. When put on the vesse , it can be aligned by itself according to
the size of the vessel , it adopts AC variable frequency drive, so
the linear speed can be adjust according to customer's requirements
.
3. Also the linear speed can be displayed by the digital uint .
4. It has advantages of stepless speed adjust, low noise
transmission and stable turning under the welding parameter in the
range.
Support and Services:
1. We provide 12month guaranty period for the whole machine
quality.
2. During this time, any issue proved because of the machine flaw
itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:
1.The Pipe Welding Rotator will be securely packaged and shipped in
a wooden crate.
2.It will be placed in an anti-rust coating for extra protection
and then covered with a thick foam sheet.
3.The crate will be sealed with screws and nails to ensure that it
is secure and will not be damaged in transit.
4.Once it is shipped, it will be tracked with a tracking code to
ensure that it is delivered safely and on time.
5. All boxes are labeled with the product name and number, and the
shipper's contact information.
7.The boxes are secured with zip ties or stretch wrap to ensure
safe handling and delivery.
8.Each box is filled with packing air bags, or bubble wrap to
protect the product during transit.
FAQ:
Q1: What is your product name?
A1: Our product name is Weldsuccess Pipe Welding Rotator.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P,
T/T. The packing is wooden case and the delivery time is 15 days.
We can supply 5 sets per month.
