Product Description:

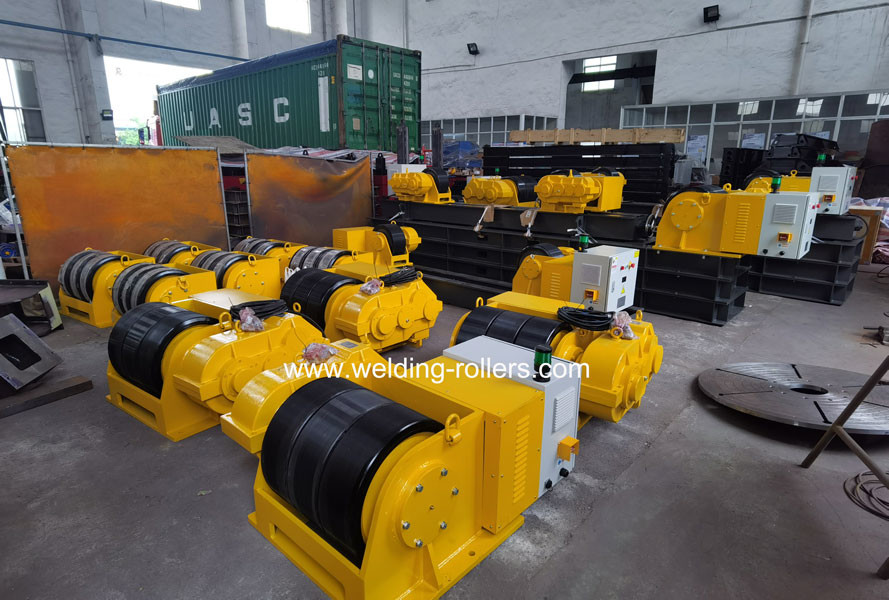

1.120 Ton load capacity welding rotators including one drive unit and one
idler unit.
2.Normally we use Diameter 500mm and width 400mm PU wheels, Steel
material roller wheels is available for customized.
3.With 2*3kw frequency variable motors, it will ensure the rotation more
stable.
4.If the vessels with eccentricity, we will use the brake motor to
increase the rotation torque.
5.Standard 120 Ton welding rotator with vessels diameter 6000mm
capacity, we also can customized for bigger size according to the
end user request.
Features:
1.The pipe welding rollers product has following different
series,say, the self-alignment, the adjustable, the vehicle, the
tilting and the anti-drift types.
2.The series conventional pipe welding rollers stand is able to
adopt to various diameter of job, by adjust the center distance of
rollers, via reserved screw holes or lead screw.
3.Depends on different application, the roller surface has three
types,PU/RUBBER/STEEL WHEEL.
4.The pipe welding rollers is mainly used for Pipe Welding ,tank
rolls polishing,turning roller painting and tank turning rolls
assembly of cylindrical roller shell.
5.The pipe welding turning roller machine can joint control with
other equipments.
Technical Parameters:
| Model | HGK-120 |
|---|
Turning Capacity | 120 ton maximum |
Drive Load Capacity | 60 ton maximum |
Idler Load Capacity | 60 ton maximum |
Adjust Way | Bolt adjustment |
Motor Power | 2*3kw |
Vessel Diameter | 800~6000mm |
Rotation Speed | 100-1000mm/min |
Speed control | Variable frequency driver |
| Roller wheels | PU |
Roller size | Ø500*400mm |
Voltage | 440V±10% 60Hz 3Phase |
Control system | Remote control 15m cable |
| Color | Customized |
Warranty | 1 Year |
Applications:
1. Roller center distance could be manually adjusted by reserved
screw bolt, so as to suitable for various work piece diameter.
2. Power roller of the welding rotator is driven by double motor.
Reducer adopts cycloidal planetary gear reducer or worm reduction
gear mode.
3. It can joint control with other equipments such as welding
manipulator,welding machine, gantry type welding machine and so on.
4. Widely used in industries including wind power, pressure vessel,
petrochemical, pipeline, steel structure, boiler, shipbuilding,
welding repair.
Support and Services:
1. We provide 12month guaranty period for the whole machine
quality.
2. During the warranty time, any issue proved because of the
machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:
1. Seaway is the most common transportation way for oversea
trading.
2. Depends on your location, combined transport by rail and sea is
also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
4.All Package in wooden case for delivery to avoid damage.
5.It will be placed in an anti-rust coating for extra protection
and then covered with a thick foam sheet.
6.The crate will be sealed with screws and nails to ensure that it
is secure and will not be damaged in transit.
FAQ:
Q & A
- Q: What is the Brand Name for this product?
- A: The Brand Name for this product is Weldsuccess.
- Q: What is the Model Number for this product?
- A: The Model Number for this product is HGK-100.
- Q: Where is this product's Place of Origin?
- A: This product's Place of Origin is China.
- Q: What certifications does this product have?
- A: This product has ISO/CE/CO certifications.
- Q: What is the Minimum Order Quantity for this product?
- A: The Minimum Order Quantity for this product is 1 set.
