Product Description:
1. The positioner can elevate, tilt, rotate and lift.
2. The electric control system consists of the electric control box
and remote control pendent,foot pedal is also available.
3. Hydraulic elevating (pressure >20 MPa) make the working
height in perfect position.
4. It can overturn the work piece 360°, tilt in 0~120°.
5. Voltage is 220V,380V,415V,600V, 50 / 60Hz , 3Ph. Or as your
required.
6. Top-class electronic components from Schneider. and braking
device can ensure column work in safe environment.
7. Full CE certificate approval to European market.
Features:
1.Hydraulic system precisely controls the elevating and tilting
functions to reach the request position needed.
2.Rotation speed of worktable is controlled by inverter, attaining
satisfactory welding speed. It is equipped with footswitch to
control the rotation direction of worktable.
3.The electric control system consists of the electric control box
and remote control pendent.
4.The mainly electric organs are from Siemens which are reliable
performance.
5.The inverter uses Yaskawa system, which has the characteristics
of low-noise, high-precision digital display, overall stability of
height anti-jamming capability.
6.The hydraulic pump is from Brevini Italy.
Technical Parameters:
| Model | YHB-20 |
|---|
Load capacity | 2 ton Maximum |
Table diameter | 1000mm |
| Lifting way | Hydraulic cylinder |
| Lifting cylinder | One cylinders |
| Lifting center stroke | 600-1470mm |
Rotation way | Motorized 1.55kw |
Tilt way | Hydraulic cylinder |
Tilting cylinder | One cylinders |
Tilting angle | 0-90° |
Control way | Remote hand control |
Foot switch | Yes |
Voltage | 380V 50Hz 3Phase |
Certificates | CE |
Warranty | One Year |
Color | Customized |
Applications:
1. Pipe welding positioners are used for diverse applications
ranging from pipe spooling to positioning of very large cumbersome
parts such as chassis components or structural steel.
2. Welding positioners greatly enhance productivity when welding
pipe, shafts, wheels, elbows and other fittings.
3. Along with welding turntables, pipe turning positioners are
particularly useful when rotating or positioning workpieces with
large offset loads.
4. We design and manufacture custom pipe welding positioners and
welding rotating tables that suit a variety of pipe handling
applications.
Support and Services:
1.Installation and setup
2.Software updates and upgrades
3.Product troubleshooting and maintenance
4.Routine inspections and testing
5.Replacement parts and accessories
6.Product customization and optimization

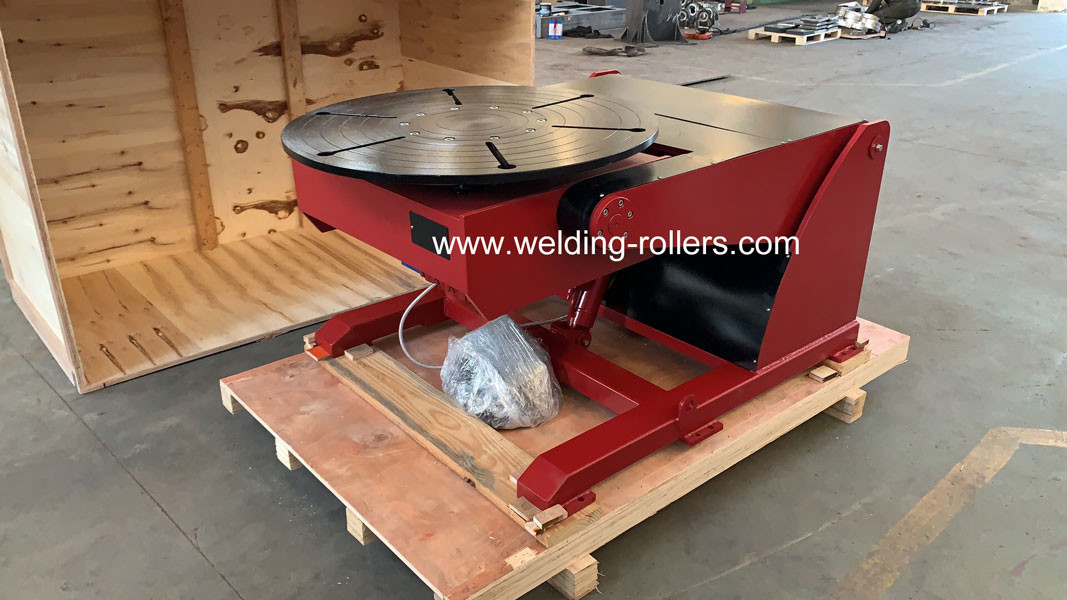

Packing and Shipping:
1. Seaway is the most common transportation way for oversea
trading.
2. Depends on your location, combined transport by rail and sea is
also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
4.All package in wooden case for delivery to avoid damage.
FAQ:
Q & A:
- Q: What is the brand name of the 3 Axis Positioner?
- A: The brand name is Weldsuccess.
- Q: What is the model number of the 3 Axis Positioner?
- A: The model number is YHB-.
- Q: Where is the 3 Axis Positioner produced?
- A: The 3 Axis Positioner is produced in China.
- Q: Does the 3 Axis Positioner have certifications?
- A: Yes, the 3 Axis Positioner has ISO/CE/CO certifications.
- Q: How many 3 Axis Positioners can be purchased at a minimum?
- A: The minimum order quantity is 1 set.
