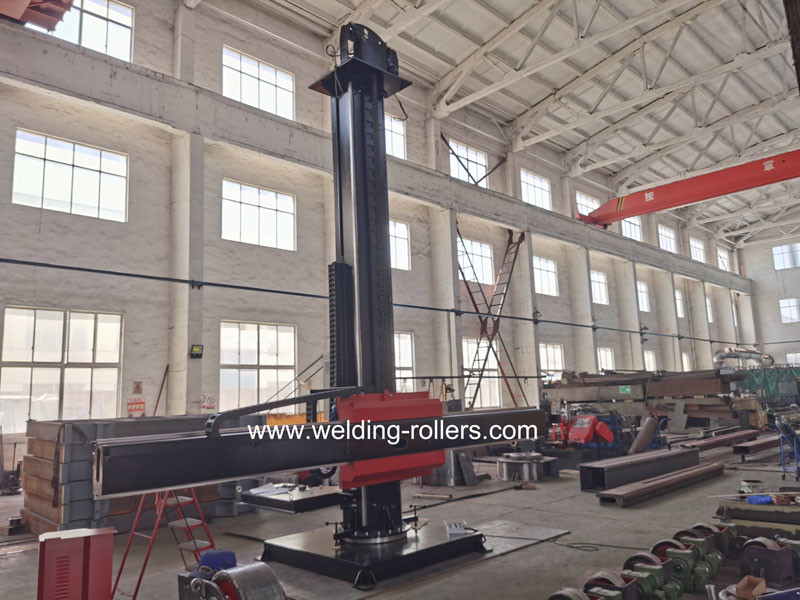

Product Description:
1. We manufactures a complete line of column and boom welding
manipulators which maximize both safety and production with load
capacities ranging from 50kg to 1,000kg.
2. Column and boom welding manipulators are a versatile and rugged
solution to obtain up to 10,000 mm of lift and reach to duplicate
the function of a highly skilled welder.
3. Manual or powered mobile sub-based cars can be included for
varying length tanks.
4. Many variations in speeds, controls, and welding equipment can
be fitted to a column and boom welding manipulator.
5. Both gear elevated and chain drive lifts are available to meet
your needs.
6. Specially-engineered column and boom welding manipulators are
available, please email our positioner sales department to schedule
a consultation.
Features:
1. There three type of structures: fixed, fixed with rotation, and
movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to
welding gun
4. It can realize automatic welding incorporate with SAW, MAG and
TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power,
chemical industry, wind tower and other lines
Technical Parameters:
| Model | LHC-3030 | LHC-3040 | LHC-4050 | LHC-5060 |
|---|
Effective Vertical Lifting Stroke of Boom (mm) | 3000 | 3000 | 4000 | 5000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 3000 | 4000 | 5000 | 6000 |
Boom Lifting speed (mm/min) | 1000 mm/min |
Boom Retracting speed (mm/min) | 120-1200 mm/min |
Column Rotation Angle (°) | □ Stationary □ ±180° |
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) |
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) |
| Warranty | 1Year |
Option | □ Seam Tracker □ Flux recovery machine |
Welding Source □ Chinese □ Lincoln Brand |
Applications:
1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all
available.
3. Movable model is available.
Support and Services:1. We provide 12month guaranty period for the whole machine
quality.
2. During this time, any issue proved because of the machine flaw
itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:
1. Seaway is the most common transportation way for oversea
trading.
2. Depends on your location, combined transport by rail and sea is
also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
4.All package in wooden case for delivery to avoid damage.
FAQ:
Q1: What is the brand name of this Welding Column And Boom?
A1: The brand name of this Welding Column And Boom is Weldsuccess.
Q2: What is the model number of this Welding Column And Boom?
A2: The model number of this Welding Column And Boom is LHC.
Q3: Where is this Welding Column And Boom made?
A3: This Welding Column And Boom is made in China.
Q4: What certifications does this Welding Column And Boom have?
A4: This Welding Column And Boom has ISO / CE / CO certifications.
Q5: What is the minimum order quantity for this Welding Column And
Boom?
A5: The minimum order quantity for this Welding Column And Boom is
1 set.
