Product Description:
1. Motorized travel conventional welding rotator is be researched,
designed and manufactured absorbing domestic and international
advanced equipment.

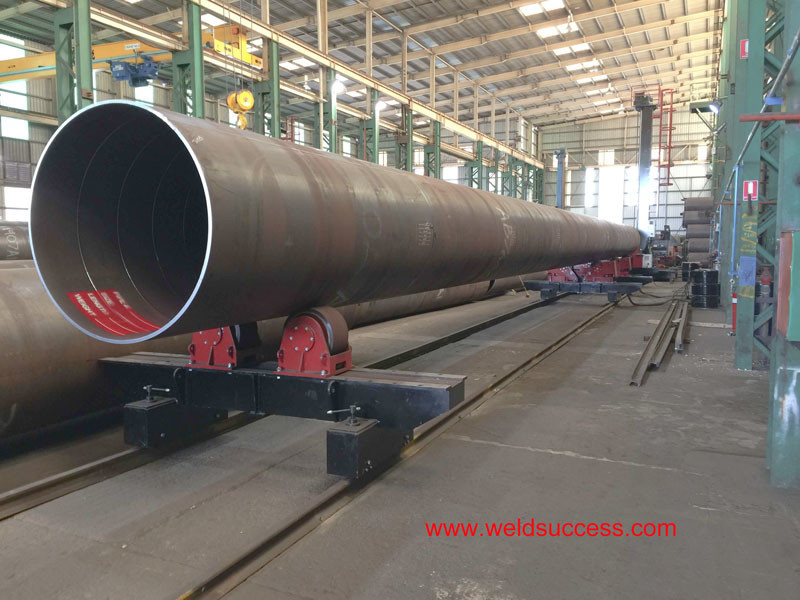

2. Motorized travel conventional welding rotator mainly used for
big pipe, containers, boilers, pressure vessels, oil tank, wind
tower and other cylinders assembly welding, blasting and painting.
3. Motorized travel conventional welding rotator can assort all
kinds of auto welding or manual welding, improving welding quality,
reducing the labor and improving productivity.
Features:
1. Adjustable Roller position is very helpful in adjusting the
rollers between the main body so that rollers of different diameter
can be adjusted over the same rollers without even buying another
size pipe roller.
2. A Stress analysis has been performed on the rigid body for the
testing of the load capability of the frame on which the weight of
the pipes depends on.
3.Polyurethane rollers are being used in this product because
polyurethane rollers are weight resistant and can protect the
surface of the pipes from being scratched up while rolling.
4. Pin mechanism is used to pin the polyurethane rollers on the
main frame.
5. Adjustable stand is used to adjust the height of the Rigid Frame
according to the need and requirement of welding the pipe and
according to the comfort level of the welder so that it can provide
maximum stability.
Technical Parameters:
| Model | CR-40 |
|---|
Turning Capacity | 40 Ton Maximum |
Drive Load Capacity | 20 Ton Maximum |
Idler Load Capacity | 20 Ton Maximum |
Adjust Way | Bolt Adjustment |
Motor Power | 2*1.5KW |
Vessel Diameter | 500-4500mm |
Rotation Speed | 100-1000mm/min |
Speed control | Variable frequency driver |
Roller wheels | PU |
Roller size | Ø400*200mm |
Voltage | 380v±10% 50Hz 3Phase |
Control system | Foot pedal 15m cable |
Color | Customized |
| Warranty | 1 Year |
Applications:
1. Pressure vessel;
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
Support and Services:
1. We provide 12month guaranty period for the whole machine
quality.
2. During this time, any issue proved because of the machine flaw
itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:
1. Seaway is the most common transportation way for oversea
trading.
2. Depends on your location, combined transport by rail and sea is
also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
4. All package in wooden case for delivery to avoid damage.
5.It will be placed in an anti-rust coating for extra protection
and then covered with a thick foam sheet.
6.The crate will be sealed with screws and nails to ensure that it
is secure and will not be damaged in transit.
7.Once it is shipped, it will be tracked with a tracking code to
ensure that it is delivered safely and on time.
8. All boxes are labeled with the product name and number, and the
shipper's contact information.
9.The boxes are secured with zip ties or stretch wrap to ensure
safe handling and delivery.
10.Each box is filled with packing air bags, or bubble wrap to
protect the product during transit.
FAQ:
- Q: What is the brand name for the Pipe Welding Rotator?
A: The brand name for the Pipe Welding Rotator is Weldsuccess.
- Q: Where is the Pipe Welding Rotator manufactured?
A: The Pipe Welding Rotator is manufactured in China.
- Q: What certifications does the Pipe Welding Rotator have?
A: The Pipe Welding Rotator has ISO/CE/CO certification.
- Q: What is the minimum order quantity for the Pipe Welding Rotator?
A: The minimum order quantity for the Pipe Welding Rotator is 1
set.
- Q: How is the Pipe Welding Rotator packaged?
A: The Pipe Welding Rotator is packaged in a wooden case.
