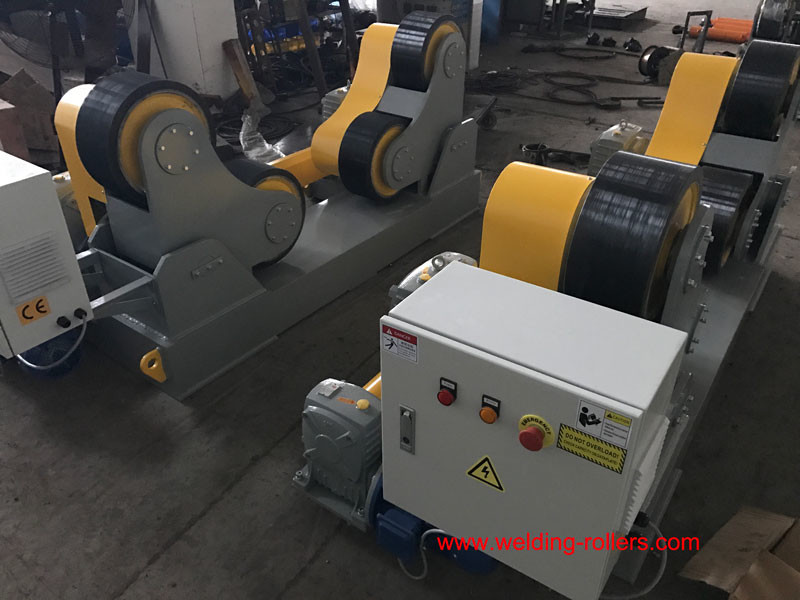

Product Description:
1.The vessel diameter range lies within 750~4800 mm .
2.One set powered / One set idler / Electric control system
3.Customers can customize 60 ton self - aligning welding rotators
to their specifications .
4.60 ton Self - aligning welding rotator can controlled by handbox
and foot pedal rubber wheel or steel wheel following your repuire.
5.Self - aligning welding rotator is easy to operate .
Features:
1.Over 20 years of manufacturing experience in self aligning
rotator.
2.Loading capacity of self - aligning rotator from 5 Tons.
3.Provide CE ,ISO certification with a one - year warranty ,free
wear parts .
4.A strong technical team supports you and big projects ,like wind
300 Tons .
5.These rotators can be simply controlled by laborers since they
can reduce welding faults and imperfections .
6. With digital turning speed readout,more convenient.
7. Foot pedal , remote hand control with 5m cable or wireless hand
control box.
8. Wooden case package for delivery.
Technical Parameters:
| Model | HGZ-60 |
|---|
Turning Capacity | 60 ton maximum |
Drive Load Capacity | 30 ton maximum |
Idler Load Capacity | 30 ton maximum |
Adjust Way | Self aliging roller |
Motor Power | 2.2KW |
Vessel Diameter | 750~4800 mm |
Rotation Speed | 100-1000mm/min |
Speed control | Variable frequency driver |
Roller wheels | PU |
Roller size | Ø450*230mm |
Voltage | 380v±10% 50Hz 3Phase |
Control system | Foot pedal 8m cable |
| Color | Customized |
Warranty | One Year |
Applications:
1.Welding rotators are used predominately in the petrol chemical
industry, onshore and off shore oil and gas industries,
conventional power and nuclear industries and many other
fabrication industries where pipes or vessel required to be rotated
for semi or automatic welding processes.
2.The use of rotators helps ensure a safe working environment for
welders handling large, heavy pipes or vessels.
3.These tools also provide increased efficiency as welders spend
less time using lifting or crane facilities to turn pipes during
the welding process.
Support and Services:
1. We provide 12month guaranty period for the whole machine
quality.
2. During this time, any issue proved because of the machine flaw
itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is
available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for
necessary.
Packing and Shipping:

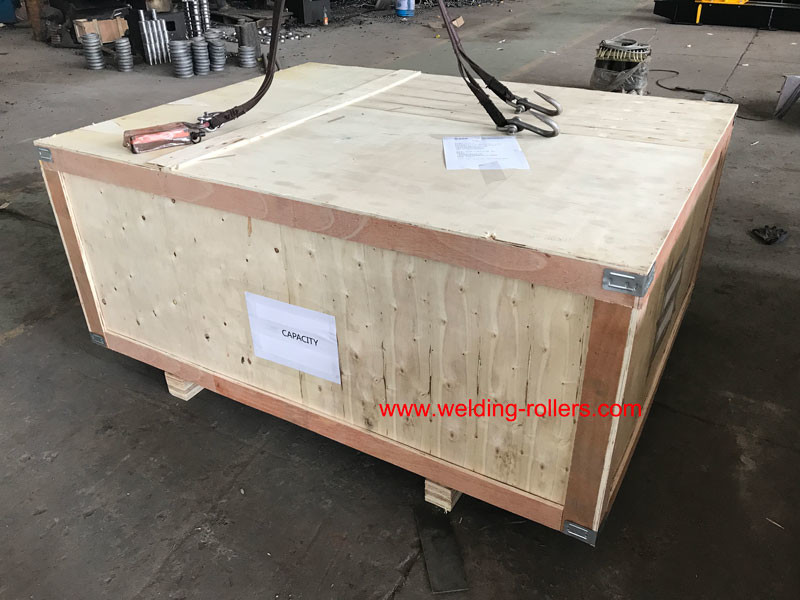

1.The Pipe Welding Rotator will be securely packaged and shipped in
a wooden crate.
2.It will be placed in an anti-rust coating for extra protection
and then covered with a thick foam sheet.
3.The crate will be sealed with screws and nails to ensure that it
is secure and will not be damaged in transit.
4.Once it is shipped, it will be tracked with a tracking code to
ensure that it is delivered safely and on time.
5. All boxes are labeled with the product name and number, and the
shipper's contact information.
7.The boxes are secured with zip ties or stretch wrap to ensure
safe handling and delivery.
8.Each box is filled with packing air bags, or bubble wrap to
protect the product during transit.
FAQ:
Q1: What is your product name?
A1: Our product name is Weldsuccess Pipe Welding Rotator.
Q2: Where is it made?
A2: It is made in China.
Q3: What certifications does it have?
A3: Our product has ISO/CE/CO certification.
Q4: What is the order quantity?
A4: The minimum order quantity is 1 set.
Q5: What is the price and payment terms?
A5: The price is negotiable and the payment terms are L/C, D/P,
T/T. The packing is wooden case and the delivery time is 15 days.
We can supply 5 sets per month.
