Product Description:
1. It has powered tilting and rotating, making the work-piece at
ideal position .
2. Worktable rotation is controlled by step-less frequency
conversion to achieve a best welding speed.
3. Rotate unit is driven by motor. It has a precise speed-adjusting
and reliable position.
4. More than 3 sets order together, you will get more discount.
5. Customers just wait at your work shop if want door to door
delivery.
6. Delivery damage risk is ours.If broken we will send you a new
one free.
Features:
1. Turn Table Welding Positioner is consisting of rotary worktable
, overturning device and electric control system.
2.Remote hand control box with digital rotation speed readout &
foot pedal control for tilting control.
3.The worktable could be rotated ( in 360°) or tilted (in 0-120°)
allowing work piece to be welded at the best position.
4. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as
per your requirement.
5.It’s Convenient for assembling intricate sub-assemblies,and ideal
for in conjunction with Column & Boom.
6. Stepless adjustable speed of the table rotation.Top-class
electronic components from Schneider.
Technical Parameters:
| Model | HBJ-06 Positioner |
|---|
Turning Capacity | 600kg maximum |
Table diameter | 1000mm |
Rotation motor | 0.75 kw |
Rotation speed | 0.09-0.9rpm |
Tilting motor | 0.75 kw |
Tilting speed | 1.1 rpm |
Tilting angle | 0-90 degree |
Max. Eccentric distance | 150 mm |
Max. Gravity distance | 100 mm |
Voltage | 380V±10% 50Hz 3Phase |
Control system | Remote control 8m cable |
Color | RAL 3003 RED+9005 Black |
Applications:
1.Pressure vessels.
2.Pipe manufacturing industries
3.Wind power fabrication
4.Chemical & fuel storage tank fabrication
5.Any heavy cylindrical job
Pipe Welding Positioners Details parts brand:
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor with fully CE certificates
3. Cable / Shuntian Reducer is made in China
4. Schneider / Siemens electric system
5. Voltage is 380V 50Hz 3P , or reset as your required
6. All the equipments with one year warranty
Support and Services:
We provide technical support and service for pipe welding
positioners. Our team of highly experienced technicians are here to
help you with any issue you may have regarding the use of our
products. We provide on-site troubleshooting and repair services,
as well as remote phone and email support. We also offer training
and consultation services to ensure you get the most out of your
pipe welding positioners.
Our team is available 24/7 to answer any questions you may have and
help you find the best solutions for your needs. We take pride in
providing world-class customer service and are dedicated to helping
you achieve success with your pipe welding positioners.
If you need assistance with your pipe welding positioners, please
don’t hesitate to contact us. We look forward to hearing from you!

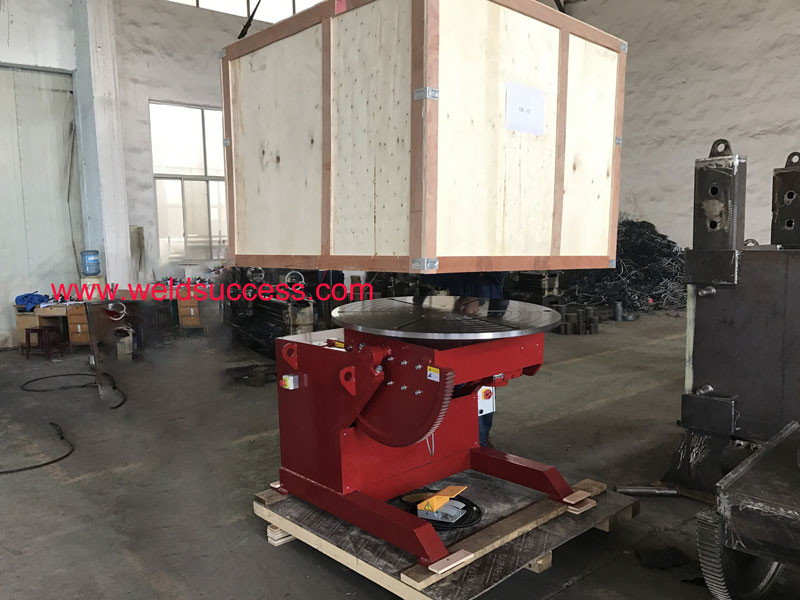

Packing and Shipping:
Pipe Welding Positioners are packaged and shipped in accordance
with the following procedure:
- Place the product in a cardboard or wooden box.
- Place the box on a pallet and secure it with straps.
- Cover the pallet with a plastic or canvas tarp, if necessary.
- Use an appropriate shipping method to transport the product.
FAQ:
Q: What is the brand name of the Pipe Welding Positioners?
A: The brand name of the Pipe Welding Positioners is Weldsuccess.
Q: Where is the Pipe Welding Positioners made?
A: The Pipe Welding Positioners is made in China.
Q: What certifications does the Pipe Welding Positioners have?
A: The Pipe Welding Positioners have ISO/CE/CO certifications.
Q: What is the minimum order quantity of the Pipe Welding
Positioners?
A: The minimum order quantity of the Pipe Welding Positioners is 1
set.
Q: What is the price for the Pipe Welding Positioners?
A: The price for the Pipe Welding Positioners is negotiable.
