| Brand Name : | Weldsuccess |
| Model Number : | HBJ-20 |
| Certification : | ISO/CE/CO |
| Price : | Negotiation |
| Payment Terms : | TT / 30 % payment in advance |
| Supply Ability : | 5 sets per month |
| Delivery Time : | 20 working days after received your payment |
300kg Light Pipe Welding Positioner/ Welding Turntable / Welding Positioner Rotator
Pipe Welding Positioners Detail Parameters
| Model | STWB-05 | STWB-20 | STWB-30 | STWB-50 |
| Max Capacity | 500 kg | 2T | 3T | 5T |
| Table Diameter (mm) | 1000 | 1500 | 2000 | 2200 |
| Turning Speed (mm/min) | 0.09-0.9 | 0.05-0.5 | ||
| Lifting stroke (mm) | According to your request. (1200/1500) | |||
| Speed Adjust / Control Way | Frequency stepless speed adjust / Wireless Control | |||
| Option : | Light-duty with larger table diameter is available | |||
Pipe Welding Positinoners Description
1. Head and Tail stock welding positioners through the two ends of the long work piece clamping working.
2. It can be adopted by electric welding Rotary achieve the desired location.
3. Head Stock welding positioner can overturn the work piece 360°.
4. The clamps can be designed according to your work piece.
5. PLC control to display the specification is available.
6. Voltage is 380V 50Hz 3P , or according to your request
resetting.
Pipe Welding Positioners Spare Parts Brand
| Pipe Welding Positoners Inverter is from Danfoss |
| Electric system is from Schneider |
| Welding Rotory Turn Table Positioner Motor is from Invertek |
| Reducer is from China brand |

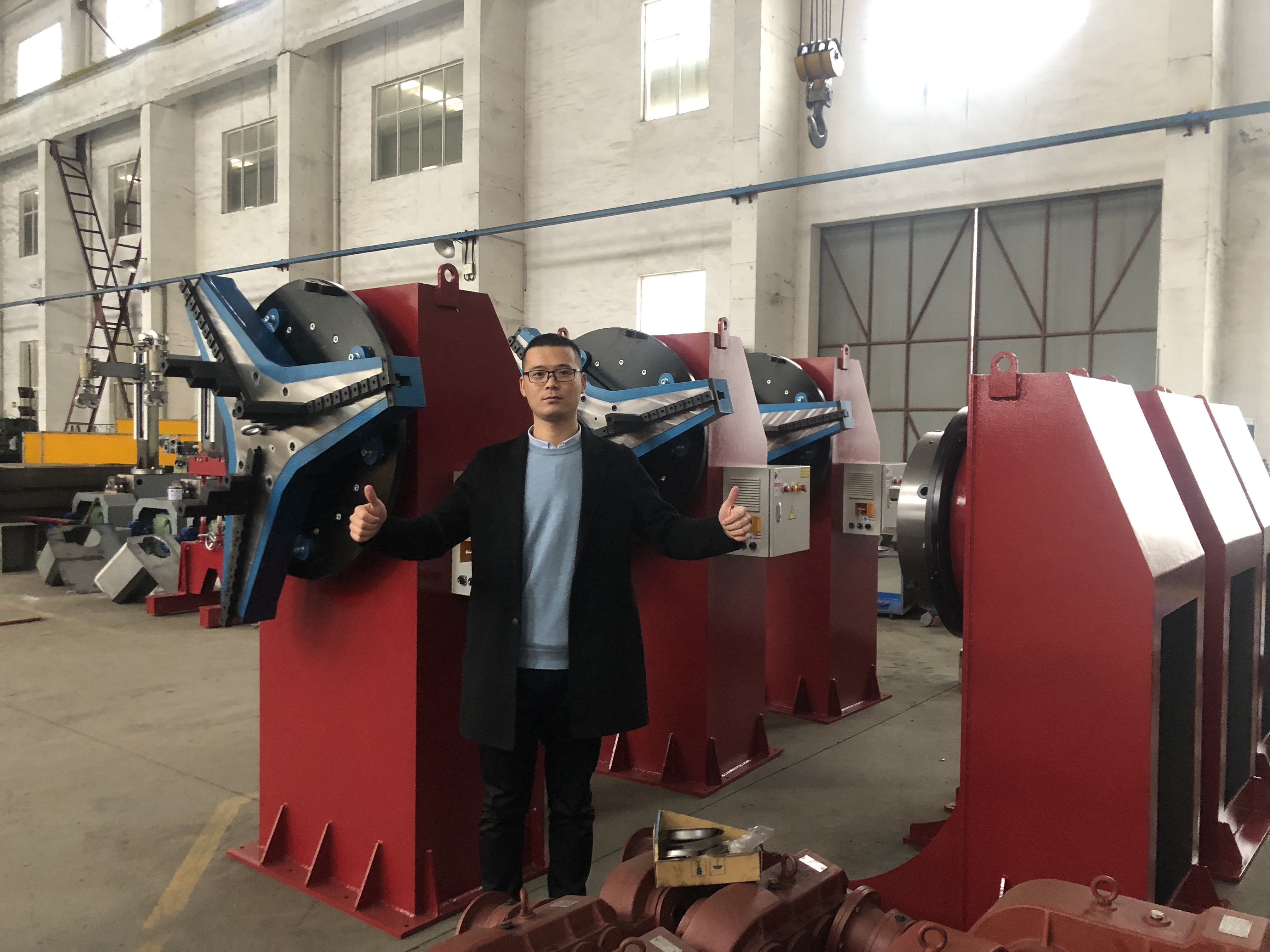

Head Tail Stock Pipe Welding Positioners Applications
THIS ONE WAS FOR AUSTRALIA, SO JUST SEND YOUR INQUIRY NOW.
|
|
