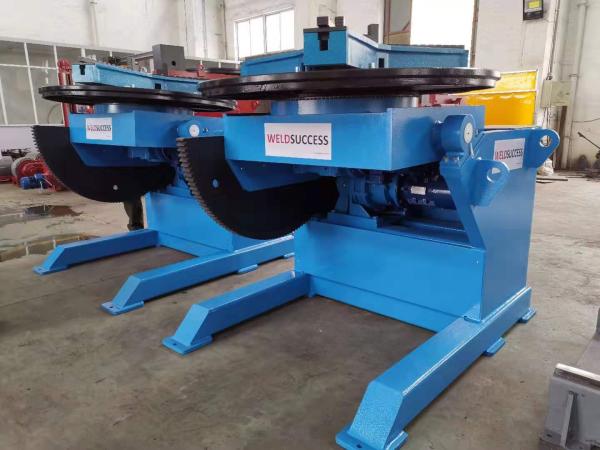

    3000kg Welding Positioner with 1200mm 3 jaw pipe chucks

    Ask Lasest Price
    Brand Name : Weldsuccess
    Model Number : HBJ-30
    Certification : ISO/CE/CO
    Price : Negotiation
    Payment Terms : TT / 30 % payment in advance
    Supply Ability : 5 sets per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    3000kg Welding Positioner with 1200mm 3 jaw pipe chucks

    300kg Welding Positioner 0-100 Turntable Timing Positioning For Welding Pipe


    Through rotating or tilting the work table, Block-type positioner is the device making the weld seam in a horizontal or boat-shaped position.

    • Electric gear tilt positioner with 0-90°tilting angle
    • Remote hand control box & foot pedal control.
    • Stepless adjustable speed of the table rotation.
    • Top-class electronic components from Schneider.
    • 100% new from original manufacturer
    • CE marking

    Pipe Welding Positioners Specifications

    Model

    HBJ-03

    HBJ-06

    HBJ-12

    HBJ-30

    HBJ-50

    Max Capacity

    300 kg

    600 kg

    1.2 T

    3 T

    5 T

    Table Diameter (mm)

    600

    1000

    1200

    1400

    1500

    Rotation Power (kw)

    0.37

    0.75

    1.1

    1.5

    3

    Rotation Speed (rpm)

    0.1-1

    0.09-0.9

    0.05-0.5

    Tilting Power (kw)

    /

    0.75

    1.5

    2.2

    3

    Tilting Angle (°)

    0-90

    0-90

    0-90

    0-90

    0-90

    Tilting Speed (kw)

    Manual

    1.1

    0.67

    0.23

    0.14

    Option:

    □ Foot Pedal □ Wireless Control □ Tilting Angle 120°


    Pipe Welding Positioners Competitive Advantage
    1. With professional anti-electromagnet funtion.
    2. Have self-locking function.
    3. Giving you the competitive price.
    4. Tilting from 0 to 120°, rotating 360°.
    5. Provide you the excellent service.
    6. Supply you the reliable products.


    application:

    1. Pressure vessels
    2. Pipe manufacturing industries
    3. Wind power fabrication
    4. Chemical & fuel storage tank fabrication
    5. Any heavy cylindrical job



    Clamps for reference

    1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

    2. Special clamps are available,but we have to design according to your work piece detail drawings.


    3000kg Welding Positioner with 1200mm 3 jaw pipe chucks


    Why Choose Wuxi Success Machinery Equipment CO.,LTD:

    1.We promise honest and fair, it's our pleasure to serve you as your purchasing consultant.

    2.We guarantee punctuality, quality and quantities strictly implement the terms of contract.

    3.Professional and experienced engineer team to ensure the advanced design of structure and electric

    4. High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.

    5.Commissioning and testing before delivery.


    THIS ONE WAS FOR AUSTRALIA, SO JUST SEND YOUR INQUIRY NOW.
