    2000kg Pipe Welding Positioners For Medium And Small Sized Tasks And Workpieces

    Ask Lasest Price
    Brand Name : Weldsuccess
    Model Number : HBJ-20
    Certification : ISO/CE/CO
    Price : Negotiation
    Payment Terms : L/C, D/P, T/T
    Supply Ability : 5 Sets Per Month
    Delivery Time : 10 working days after received your payment
    • Product Details
    • Company Profile

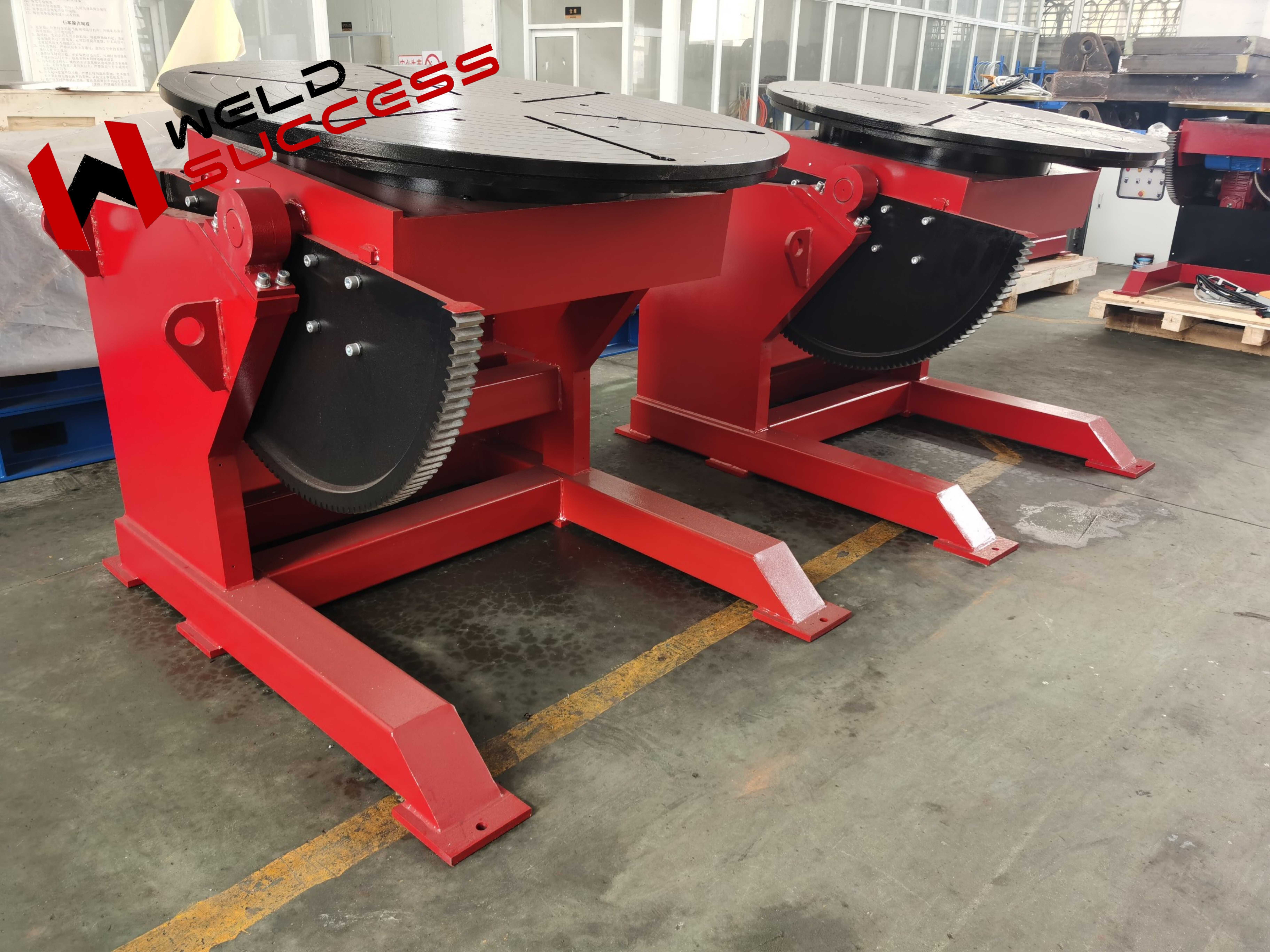

    2000kg Pipe Welding Positioners For Medium And Small Sized Tasks And Workpieces

    2-ton welding positioner is a piece of equipment used in welding and fabrication processes to facilitate convenient and precise welding operations. Here are some key features of a 2-ton welding positioner:


    1, Load Capacity: The welding positioner is designed to handle workpieces with a maximum weight capacity of 2 tons. It is suitable for medium-sized welding tasks and workpieces.

    2, Positioning Function: The equipment has a rotating function that allows the workpiece to rotate 360 degrees in the horizontal direction. This enables welders to easily adjust the position of the workpiece and find the optimal welding angle.

    3, Control Operation: The welding positioner is equipped with a control panel for controlling the rotation speed and direction. Welders can achieve precise workpiece positioning by operating the buttons and knobs on the control panel.

    4, Stability and Durability: The welding positioner is designed with a sturdy structure and durable materials to ensure stability and long-term use during welding operations.

    5, Safety: To ensure the safety of the operators, welding positioners are typically equipped with safety devices such as emergency stop buttons and protective covers. These devices help to quickly stop the equipment in case of emergencies and provide necessary protection.


    Technical Parameters:

    Model

    HBJ-20

    Loading Capacity

    2000kg maximum

    Table diameter

    1200mm
    Rotation motor0.75Kw
    Rotation speed0.05-0.5rpm

    Tilting motor

    1.5kw

    Tilting speed

    0.67rpm

    Tilting angle

    0~90°

    Max.Eccentric distance150mm

    Max.Gravity distance

    100mm

    Voltage

    380V ±10% 50Hz 3Phase

    Control system

    Remote control 8m cable

    Color

    Customized

    Warranty

    1 Year
    FAQ:
    Q1: What is the Brand Name of this product?A1: The Brand Name of this product is Weldsuccess.
    Q2: Where is the Place of Origin of this product?A2: The Place of Origin of this product is China.
    Q3: What is the Certification of this product?A3: The Certification of this product is ISO/CE/CO.
    Q4: What is the Minimum Order Quantity of this product?A4: The Minimum Order Quantity of this product is 1 set.
    Q5: How long is the Delivery Time of this product?A5: The Delivery Time of this product is 20 working days after received your payment.
