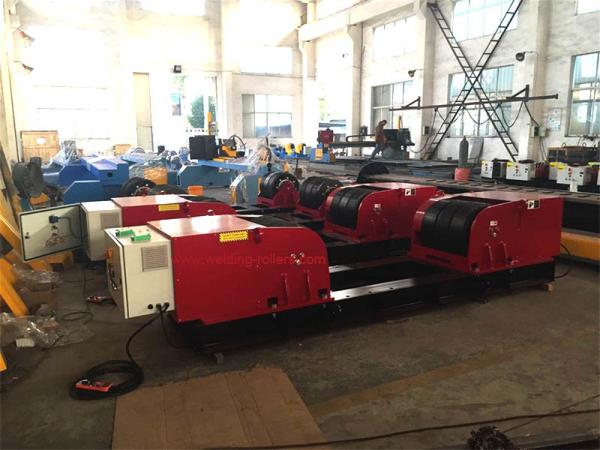

200T Pipe Welding Rotator PU Wheel ,Wind Tower Tank Turning Welding Rollers
Strong Power High Speed , 200T Tank Turning Rolls Pipe Rollers For Welding
Brife Pipe Welding Rotator Info
1. Load Capacity : Driver 200,000 lbs (100T) , Idler 200,000 lbs (100T).
2. Three (3) Tires 20" dia. x 8" wide rollers on one side to ensure turning steady.
3. For work rotating diameters from 3 ft to 19 ft., 380 V , 3-ph or as per requirements
4. Variable Speed Rotation by Inverter Drive with 20 ft Remote Pendant Control
5. Pipe welding rotator control system : Hand control box with digital readout
6. Original Place : Wuxi China , 100% New
7. Delivery time : 20 days
Conventional Pipe Welding Rotator Specification
Model | HGK-60 | HGK-100 | HGK-200 | HGK-300 | HGK-500 |
Max Capacity | 60 T | 100 T | 200 T | 300 T | 500 T |
Roller Diameter (mm) | 450 | 500 | 700 | 800 | 900 |
Roller Width (mm) | 220 | 280 | 300 | ||
Working Range (mm) | 800-5000 | 1000-6000 | 1000-8000 | ||
Roller Speed (mm/min) | 1-1000 | ||||
Motor Power (kw) | 2*2.2 | 2*3 | 2*4 | 2*5.5 | 2*7.5 |
Option : | □ Bolt Adjustment □ Lead Screw Adjustment | ||||
Pipe Welding Rotator Description
1. Both drive rolls are powered by a heavy duty direct gear drive and brake motor.
2. All of the gears and bearings are fully sealed and lubricated for long life and safety.
3. Polyurethane roller, Rubber Roller or steel roller are all available.
4. Remote control or Wireless control box with digital display of turning speed.
5. Other types of turning rolls like tank fit-up rolls, and self aligning welding rolls.
Attention Please
1. Pipe welding rotators, pipe rolls and vessel rotators are a necessity for light and heavy duty pipe or vessel welding applications.
2. Whether you are positioning small diameter pipe or turning extremely large industrial vessels, we can design and build turning rolls that will help you work safely and efficiently.
Pipe Welding Rotator Details Parts Brand
1. Inverter is from Taida / Danfoss
2. Motor is from Invertek / ABB
3. Reducer is from Cable / Chengda
4. Electric system is from Schneider / Siemens
5. Wireless hand control box / foot pedal etc. control system
