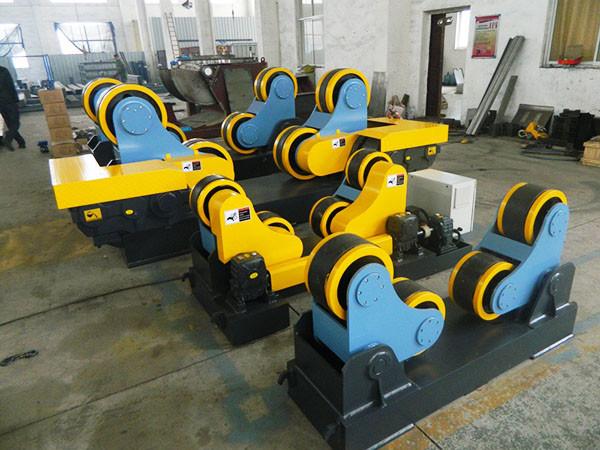

Heavy Duty Pipe Welding Rotator,Self Aligning Tank Turning Rolls For Wind Tower Load Capacity 40T

40T Welding Rotator Description

1. Consist : One powered roller , One idler roller , Electric control system

2. Adjust way : Adjust the pipe diameter automatically with diameter 23 - 165 inches

3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available

4. Control Way : Remote hand control box / Wireless hand control box

5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )

6. Original : Our factory / Wuxi China

Specification

Applications:

1. Several single pipes butting welding.

2. SAW / TIG welding are all supported.

3. We also supply the welding manipulator and flux recovery machine.

Details Control system and Brand

1. Inverter is from Taida / Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider

More Questions Customers May Concerned

Q : What about the transportion?

A : 1. Fully packaged in wooden case to anti damage during the transportational process .

2. Usually we take seaway ,cause its more convenient and cheaper for big machine.

3. Door to door delivery service is also available.

Q : What is your warranty and after sale service ?

A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.

2. If you have any questions on the installation , you will get our engineers respond within 24 hours.

Attention please

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.

5. All our pipe welding rotators have 20% over weight design, but we suggest used on the safe rangs.

6. We have strong delivery team, including the Sea freight and Air transportation. Door to door available.

7. Just advise me your desitination port then we will give you the final CIF price.

DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.

Mainly products :
1. Conventional welding rotator --- Capacity from 2T to 1000T. (Tank turning rolls)
2. Self aligning welding rotator --- Capacity from 5T to 200T. (Welding roller)
3. Scissor type welding rotator --- 2T / 5T height adjustment. (Pipe support roller)
4. Welding positioner --- Capacity from 50kg to 50T.
5. Column Boom --- Model from 1x1 to 8x8 all available. (Welding manipulator)
