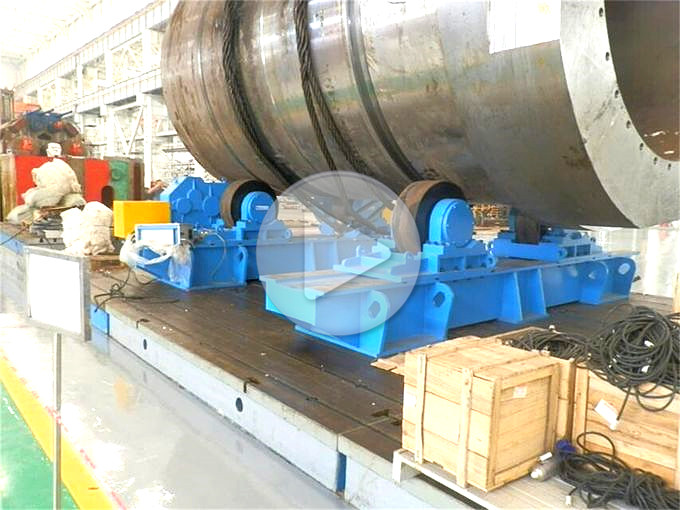

Lead Screw Adjustment Pipe Welding Rotator, 10T 90 Inches Tank Turning Rolls

Pipe Welding Rotator Description

1. Used on 12 inches to 125 inches diameter tank support turning.

2. Package : One powered roller / one idler roller / Electric Control System
3. Voltage : 110V - 600V 50 / 60 Hz 1P / 3P
4. Pipe Welding Rotator wheels material : Rubber / Steel / PU (Polyurethane)
5. Original : Our Factory , Wuxi China
6. Condition : New / Fully CE supported

Attention Please On Pipe Welding Rotator Using

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning Pipe Welding Rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M / 26 foot , then you should use 1 powered with 2 idlers to support.

Specification For Pipe Welding Rotator

Other Types Option

1. We also supply the self-alignment, the vehicle used, the tilting and the anti-drift types.
2. Bolt adjustable Pipe Welding Rotator can adjust the center distance by reserved screw holes. So as to adapt to various diameter work piece.
3. Lead screw adjustable Pipe Welding Rotator is also available.
4. The roller is mainly used for welding & assembling of pressure vessel.
5. Shot blasting used, painting used Pipe Welding Rotator is also available.
6. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.

Details Parts Brand On Pipe Welding Rotator

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system

Transportation For Pipe Welding Rotator

1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.

After Sale Service For Pipe Welding Rotator

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.

PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.

Mainly products :
1. Conventional welding rotator --- Capacity from 2T to 1000T. (Tank turning rolls)
2. Self aligning welding rotator --- Capacity from 5T to 200T. (Welding roller)
3. Scissor type welding rotator --- 2T / 5T height adjustment. (Pipe support roller)
4. Welding positioner --- Capacity from 50kg to 50T.
5. Column Boom --- Model from 1x1 to 8x8 all available. (Welding manipulator)
