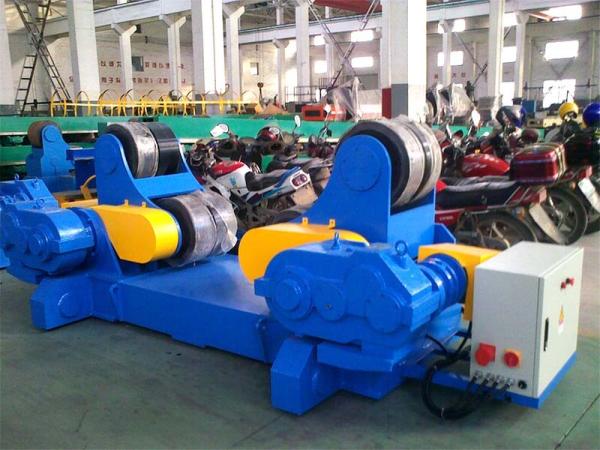

CE Rubber Automatic Pipe Welding Rotators for Welding 47 - 255 Inches Diameter Pipe
Pipe Welding Rotators Using Attention
If you have any special request , just advise us ,here is our suggestion :
1. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.
2. All our pipe turning rolls have 20% over weight design, but we suggest used on the safety rangs.
3. We have strong delivery team, including the Sea freight and Air transportation. Door to door available.
4. Just advise me your desitination port then we will give you the final CIF price.
Self Aligning Pipe Welding Rotator Supply Ranges
1. Consist : One powered roller , One idler roller , Electric control system
2. Pipe welding rotator adjust way : Adjust the pipe diameter automatically with diameter 47 - 255 inches
3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available
4. Control Way : Remote hand control box / Wireless hand control box
5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )
6. Original : Our factory / Wuxi China
Pipe Welding Rotator / Pipe Rollers For Welding Specification
Model | HGZ-60 | HGZ-80 | HGZ-100 | HGZ-150 | HGZ-200 |
Max Capacity | 60 T | 80 T | 100 T | 150 T | 200 T |
Roller Diameter (mm) | 450 | 500 | 550 | 550 | 550 |
Roller Width (mm) | 120 | ||||
Working Range (mm) | 750-4800 | 850-5000 | 1000-5500 | 1200-6500 | 1500-8000 |
Roller Speed (m/h) | 1 - 1000 mm/min | ||||
Motor Power (kw) | 4 | 4 | 5.5 | 5.5 | 7.5 |
Option : | □ Moving wheels □ Wireless Control □ Remote Control | ||||
Pipe Welding Rotator Applications
1. If you want moving function , just send us one email.
2. For big tank seam welding after plate rolling.
3. For single tanks butt welding to be the big one pipe.
More Questions Customers May Concerned
Q : What about the transportion?
A : 1. Fully packaged in wooden case to anti damage during the transportational process .
2. Usually we take seaway ,cause its more convenient and cheaper for big machine.
3. Door to door delivery service is also available.
Q : What is your warranty and after sale service ?
A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.
2. If you have any questions on the installation , you will get our engineers respond within 24 hours.
Pipe Welding Rotator Details Control system and Brand
1. Inverter is from Taida / Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
