    20T Conventional Pipe Welding Rollers

    Ask Lasest Price
    Brand Name : SKSS
    Model Number : HGK - 20
    Certification : ISO / CE / CO
    Price : Negotiation
    Payment Terms : T/T, L/C, D/P, Western Union
    Supply Ability : 5 Sets Per Month
    Delivery Time : 10 Days
    • Product Details
    • Company Profile

    20T Conventional Pipe Welding Rollers

    20 Tons Bolt Adjustment Conventional Pipe Welding Rollers With Movable Pipe Support Rollers


    Description


    1. Package : One powered roller / one idler roller / Electric Control System
    2. Voltage : 110V - 600V 50 / 60 Hz 1P / 3P

    3. Roller : Rubber / Steel / PU (Polyurethane)

    4. Original : Factory , Wuxi China

    5. Condition : New


    Attention please


    1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.

    2. If your work piece material is Nonferrous Metals , we suggest PU rollers , more soft .

    3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.

    4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.


    Specification


    Model

    HGK - 5

    HGK - 10

    HGK - 20

    HGK - 30

    HGK - 40

    Max Capacity

    5 T

    10 T

    20 T

    30 T

    40 T

    Roller Diameter (mm)

    250

    300

    350

    350

    400

    Roller Width (mm)

    140

    170

    180

    180

    200

    Working Range (mm)

    250-2800

    300-3200

    500-4500

    500-4500

    500-4800

    Roller Speed (mm/min)

    1 - 1000

    Motor Power (kw)

    2 * 0.37

    2 * 0.55

    2 * 1.1

    2 * 1.5

    2 * 1.5

    Option :

    □ Bolt Adjustment □ Lead Screw Adjustment


    Other information


    1. Self aligning tank turning roll is also available.
    2. The roller is mainly used for welding & assembling of pressure vessel.
    3. Shot blasting used, painting used tank turning roll is also available.
    4. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.

    5. Fit up rotators is to ensure the butt welding well for auto welding. Available.


    Details parts brand


    1. Danfoss / Yaskawa inverter

    2. ABB / Invertek motor

    3. Cable / Shuntian Reducer

    4. Schneider / Siemens electric system

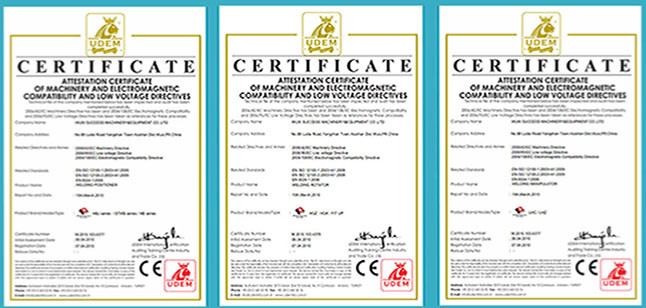

    5. All equipments with CE certificates.


    20T Conventional Pipe Welding Rollers


    Transportation


    1. Seaway is the most common transportation way for oversea trading.

    2. Depends on your location, combined transport by rail and sea is also an option.

    3. Certainly railway transportation is also acceptable if it is the most suitable approach.
    4. All package in wooden case for delivery to avoid damage.


    After sale service


    1. We provide 12month guaranty period for the whole machine quality.

    2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

    3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

    4. Engineer service on user premises is also available for necessary.


    20T Conventional Pipe Welding Rollers


    Installation


    1. Normally the rotators shipped with fully installation.

    2. It's easy to installate via our detail drawings supported.

    3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.


    PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
