Automatic Welding / Cutting Weld Plus Pipe Welding Positioners For Pipe Turning Welding

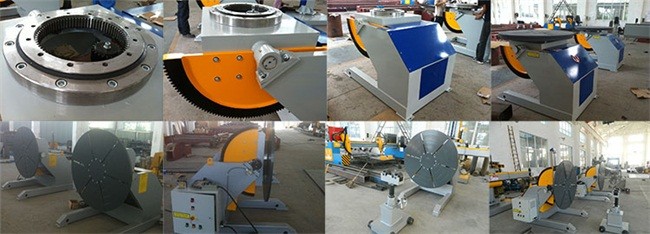

Pipe Welding Positioners Description
1. Working with support rollers together for pipe turning and welding / cutting automaticly.
2. Pipe welding positioners is mainly composed of worktable
rotating and tilting unit and electric control system .
3. Worktable rotation is controlled by step-less frequency
conversion to achieve a best welding speed .
4. Voltage is 380V 50Hz 3P , or according to your request
resetting.
Pipe Welding Positioners Detail Parameters
Model | HBJ-03 | HBJ-06 | HBJ-12 | HBJ-30 | HBJ-50 |
Max Capacity | 300 kg | 600 kg | 1.2 T | 3 T | 5 T |
Table Diameter (mm) | 600 | 1000 | 1200 | 1400 | 1500 |
Rotation Power (kw) | 0.37 | 0.75 | 1.1 | 1.5 | 3 |
Rotation Speed (rpm) | 0.1-1 | 0.09-0.9 | 0.05-0.5 | ||
Tilting Power (kw) | / | 0.75 | 1.5 | 2.2 | 3 |
Tilting Angle (°) | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
Tilting Speed (kw) | Manual | 1.1 | 0.67 | 0.23 | 0.14 |
Option: | □ Foot Pedal □ Wireless Control □ Tilting Angle 120° | ||||
Competitive Advantage
1. We ( Factory ) will control every step during the production to ensure the equipments quality.
2. Fully equipments are treatment by heating and sand blasting treatment .
3. Control way is remote control with 5 m length cable or wireless control hand control box.
Workpiece welding way
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.
1. All our pipe welding positioners have passed CE test and get the CE certificates.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. We can design the special equipments according to your request.
4. We provide 12month guaranty period for the whole machine quality.
JUST CONTACT US FOR DETAIL QUOTATION.
|
|
