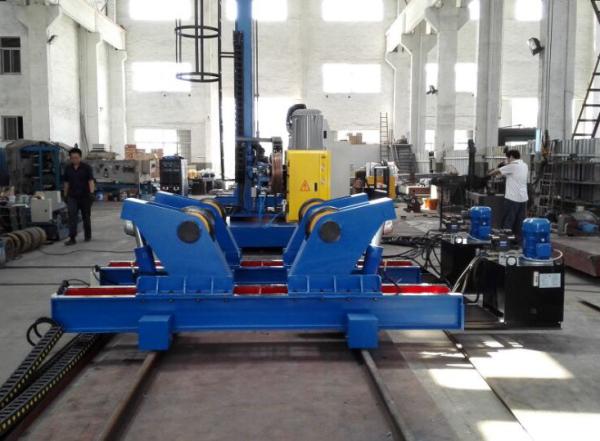

Hydrulic Fit Up Pipe Welding Rollers , Pipe Stand Rollers , Auto Welding Steel Pipe Rollers

Attention On Pipe Welding Rollers Using

1. Movable pipe welding rollers can auto move on the rails for the third single pipe butt welding.

2. It will be controled by Hand Remote Control Box or Wireless Control Box.

3. During two single pipes butting , the position could not butt well sometimes , our rotators can adjust the

butt position up or down / left or right to realize the perfect butt position.

4. Two self aliging rollers in the two end, and two hydrulic adjust rollers in the middle to adjust the butt positon.

Supply Ranges

1. Pipe welding rollers consist : One powered roller , One idler roller , Two Hydrulic Adjustment Roller , Electric control system

2. Adjust way : Adjust the pipe diameter automatically with diameter 750 - 4800 mm

3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available

4. Control Way : Remote hand control box / Wireless hand control box

5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )

6. Original : Our factory / Wuxi China

Pipe Welding Rollers Specification

Pipe Welding Rollers Applications

1. For pipe support and turning for auto seam welding

2. To make wind tower

3. For auto circle seam welding

4. Controlled by foot pedal / hand control box

More Questions Customers May Concerned

Q : What about the transportion?

A : 1. Fully pipe welding roller packaged in wooden case to anti damage during the transportational process .

2. Usually we take seaway ,cause its more convenient and cheaper for big machine.

3. Door to door delivery service is also available.

Q : What is your warranty and after sale service ?

A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.

2. If you have any questions on the installation , you will get our engineers respond within 24 hours.

Details Control system and Brand On Pipe Welding Rollers

1. Inverter is from Taida / Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider

Our suggestion for pipe welding rollers

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.

DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.

Mainly products :
1. Conventional welding rotator --- Capacity from 2T to 1000T. (Tank turning rolls)
2. Self aligning welding rotator --- Capacity from 5T to 200T. (Welding roller)
3. Scissor type welding rotator --- 2T / 5T height adjustment. (Pipe support roller)
4. Welding positioner --- Capacity from 50kg to 50T.
5. Column Boom --- Model from 1x1 to 8x8 all available. (Welding manipulator)
