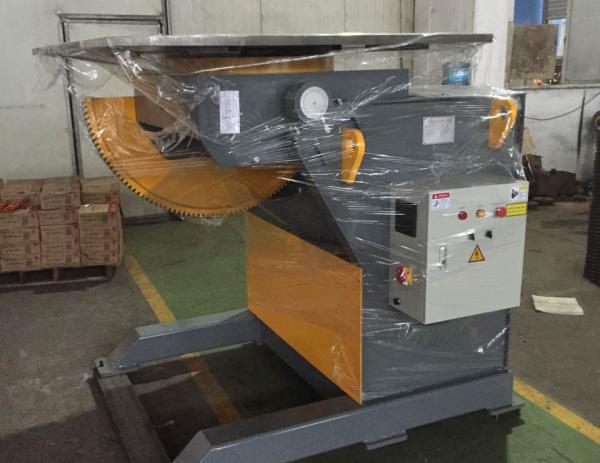

6500lbs Rotary Pipe Welding Positioner Joint Welding Manipulator
Brife Info
1. Export : To Poland Market.
2. Voltage : 380V 50 Hz 3P
3. Delivery Time : 20 Days for 2 sets
4. Package : Wooden Case
Description
1. welding positioner is mainly composed of worktable rotating and
tilting unit and electric control system .
2. It has powered tilting and rotating, making the work-piece at
ideal position .
3. Worktable rotation is controlled by step-less frequency
conversion to achieve a best welding speed .
4. Rotate unit is driven by motor. It has a precise speed-adjusting
and reliable position.
5. Remote control box can realize the remote operation of work
bench, also can connect with operating machines to realize linkage operation.
Specifications
Model | HBJ-03 | HBJ-06 | HBJ-12 | HBJ-30 | HBJ-50 |
Max Capacity | 300 kg | 600 kg | 1.2 T | 3 T | 5 T |
Table Diameter (mm) | 600 | 1000 | 1200 | 1400 | 1500 |
Rotation Power (kw) | 0.37 | 0.75 | 1.1 | 1.5 | 3 |
Rotation Speed (rpm) | 0.1-1 | 0.09-0.9 | 0.05-0.5 | ||
Tilting Power (kw) | / | 0.75 | 1.5 | 2.2 | 3 |
Tilting Angle (°) | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
Tilting Speed (kw) | Manual | 1.1 | 0.67 | 0.23 | 0.14 |
Option: | □ Foot Pedal □ Wireless Control □ Tilting Angle 120° | ||||
Competitive Advantage
1. It’s easy to control with electric cabinet and hand control panel.
2. Slewing bearing will ensure turning and over turning smoothly.
3. Several concentric grooves are processed onto the surface of the worktable to
help position the work piece at the center.
Clamps for reference
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
Certificate and Company Work Shop
1. All our equipments have passed CE test and get the CE certificates.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. We can design the special equipments according to your request.
4. We provide 12month guaranty period for the whole machine quality.
JUST CONTACT US FOR DETAIL QUOTATION AND WORKING VIDEOS.
|
|
