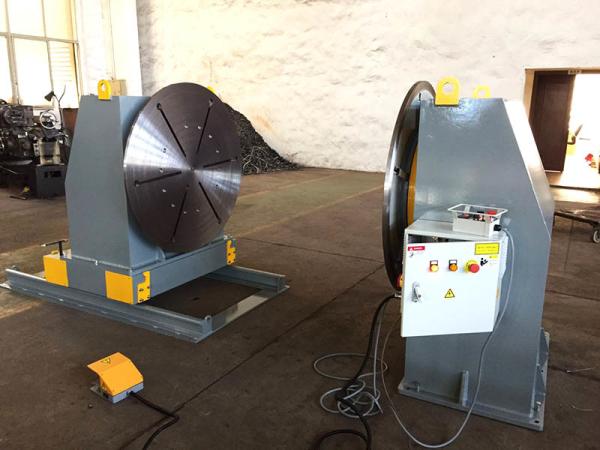

Head / Tail Stock Pipe Welding Positioners , Welding Turn Table For Drivers Beam 360 Tilting Angle
Head Tail Stock Pipe Welding Positioners Description
1. Head and Tail stock pipe welding positioners through the two ends of the long work piece clamping working.
2. It can be adopted by electric welding rotary achieve the desired location.
3. Head Stock pipe welding positioners can overturn the work piece 360°.
4. The clamps can be designed according to your work piece.
5. PLC control to display the specification is available.
6. Voltage is 380V 50Hz 3P , or according to your request
resetting.
Pipe Welding Positioners Detail Parameters
Model | STWB-05 | STWB-20 | STWB-30 | STWB-50 |
Max Capacity | 500 kg | 2T | 3T | 5T |
Table Diameter (mm) | 1000 | 1500 | 2000 | 2200 |
Turning Speed (mm/min) | 0.09-0.9 | 0.05-0.5 | ||
Lifting stroke (mm) | According to your request. (1200/1500) | |||
Speed Adjust / Control Way | Frequency stepless speed adjust / Wireless Control | |||
Option : | Light-duty with larger table diameter is available. | |||
Head Tail Stock Pipe Welding Positioners Applications
1. Pipe to pipe (or Elbow or Flange);
2. Shaft, dish, cylinder, etc welding;
3. Framework of car, digger arm, loading machine, digger machine;
4. We also have the columns lifting model for reference. (video available)
Workpiece Welding Way
1. We have 3 jaws or 4 jaws chucks for chosen.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.
4. Using together with the auto welding robot.
5. Just advise me yours requestion for detail proposal.
After sale service
1. All our pipe welding positioners have passed CE test and get the CE certificates.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. Fully installed before package and delivery, so its easy for your to installation at your work shop.
4. Door to door installation service is also available if customer needed.
5. We provide 12month guaranty period for the whole machine quality.
Delivery and Installation
1. Fully package in wooden case then delivery according to your request. Sea / Train etc.
2. Fully test and installated before delivery.
3. Door to door delivery is available.
JUST CONTACT US FOR DETAIL QUOTATION.
|
|
