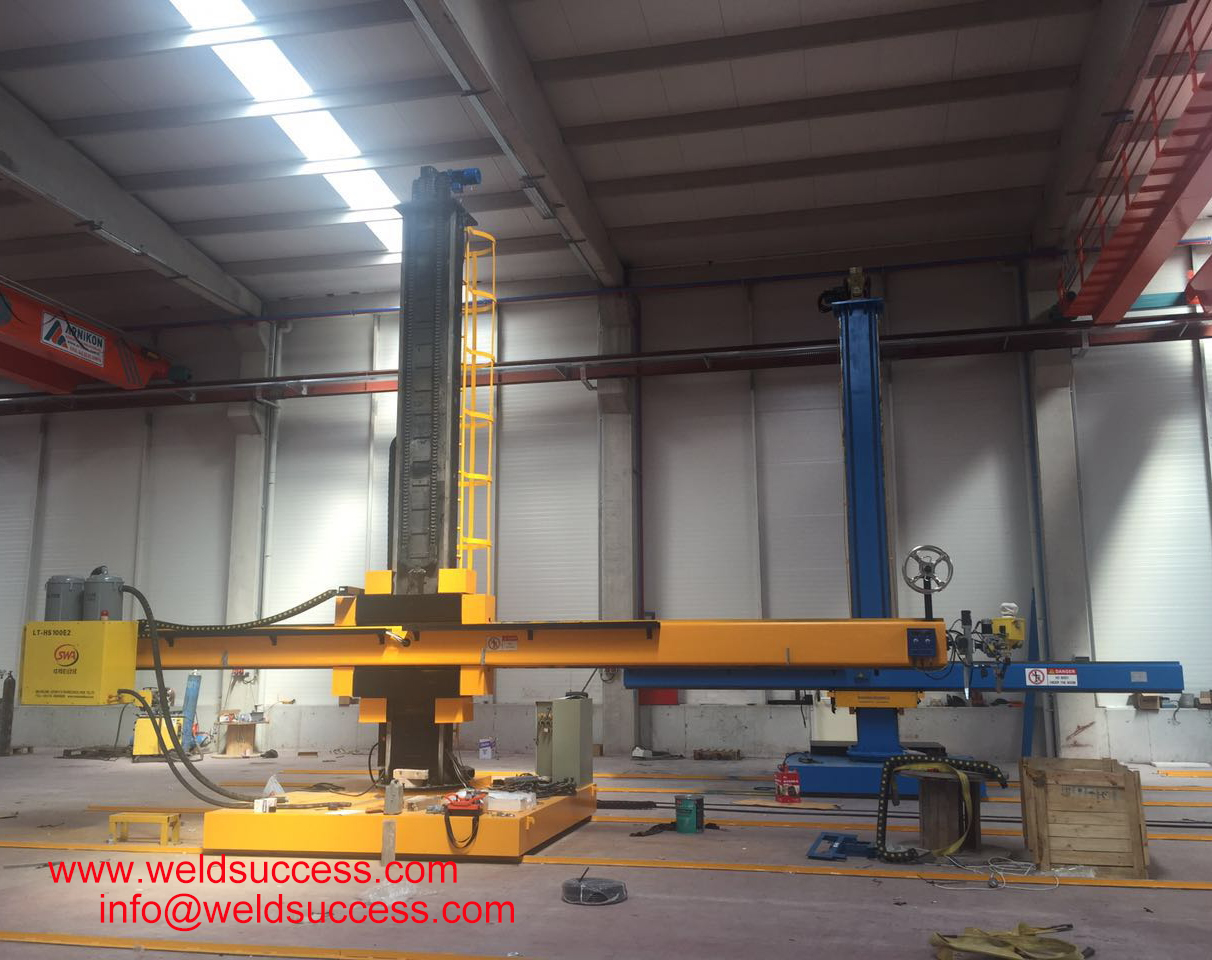

Automatic Tank Welding Column And Boom Manipulator For 8000 mm Diameter 5000 mm Length
Welding Column And Boom More Detail WELDSUCCESS PRODUCTS.pdf
1. Tank range : 8000mm diameter Maximum..
2. Voltage : 380V / 415V / 480V / 575V 50/60Hz 3Phase
3. Motorized moving and rotation.
4. Flux Recovery Mahcine / Seam Tracker / Welding Seam Monitor
5. Working with the welding rotator together to relize fully auto welding.
6. Original manufacturer supply the equipment & installation service.
7. Welding column boom from Wuxi Success Machinery Equipment Co., Ltd
Welding Column And Boom More type available
Model | LHC-4040 | LHC-5050 | LHC-6060 | LHC-8080 |
Effective Vertical Lifting Stroke of Boom (mm) | 4000 | 5000 | 6000 | 8000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 4000 | 5000 | 6000 | 8000 |
Boom Lifting speed (mm/min) | 1 | |||
Boom Retracting speed (mm/min) | 0.12-1.2 | |||
Column Rotation Angle (°) | □ Stationary □ ±180° | |||
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) | |||
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) | |||
Option : | □ Seam Tracker □ Flux recovery machine | |||
Welding Source □ Chinese □ Lincoln Brand | ||||
Welding Column And Boom Description
1. There three type of structures: fixed, fixed with rotation, and
movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to
welding gun
4. It can realize automatic welding incorporate with SAW, MAG and
TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power,
chemical industry, wind tower and other lines
Welding Column And Boom Applications

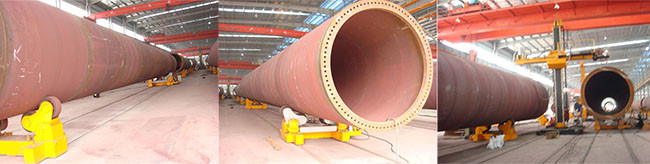

1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all available.
3. Movable model is available.
Welding Column And Boom Advantages
1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the
advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best
performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work
shop.
Welding Column And Boom Production Details
1. There is safe ladder behind the column for maintenance of
equipment
2. Limit switch for both boom travel and column
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands
5. Sand blasting treatment to main welding parts before painting.
Welding Column And Boom Installation
1. Normally all the equipments will disassemble and packaged in Container.
2. We will supply you all the detail installation drawings for your reference.
3. Our engineers also supply door to door installation service.
