5X5 Meters Automatic Welding Column And Boom ,Cross Welding Manipulator
Brife info

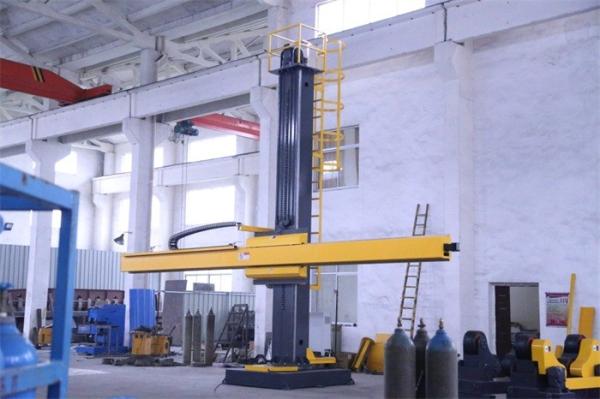

This picture is our customer testing the machine at our work shop.
1. Tank range : 40 - 200 inches.
2. Voltage : 110V - 600 V
3. Motorized moving and rotation.
4. Flux Recovery Mahcine / Seam Tracker / Welding Seam Monitor
5. Working with the welding rotator together to relize fully auto welding.
Description
1. There three type of structures: fixed, fixed with rotation, and
movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to
welding gun
4. It can realize automatic welding incorporate with SAW, MAG and
TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power,
chemical industry, wind tower and other lines
Specifications
Model | LHC-4040 | LHC-5050 | LHC-6060 | LHC-8080 |
Effective Vertical Lifting Stroke of Boom (mm) | 4000 | 5000 | 6000 | 8000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 4000 | 5000 | 6000 | 8000 |
Boom Lifting speed (mm/min) | 1 | |||
Boom Retracting speed (mm/min) | 0.12-1.2 | |||
Column Rotation Angle (°) | □ Stationary □ ±180° | |||
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) | |||
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) | |||
Option : | □ Seam Tracker □ Flux recovery machine | |||
Welding Source □ Chinese □ Lincoln Brand | ||||
Applications
1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all available.
3. Movable model is available.
Advantages
1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the
advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best
performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work
shop.

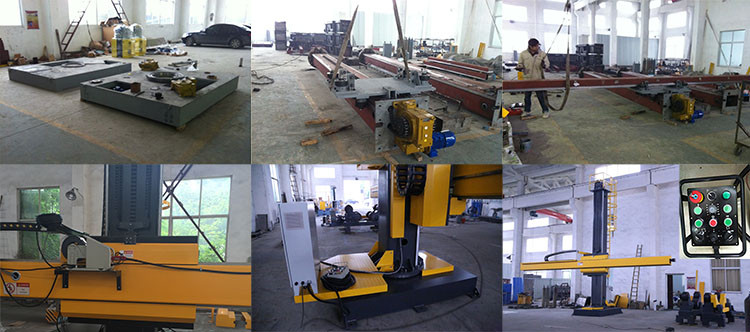

More Details
1. There is safe ladder behind the column for maintenance of
equipment
2. Limit switch for both boom travel and column
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands
5. Sand blasting treatment to main welding parts before painting
Installation
1. Normally all the equipments will disassemble and packaged in Container.
2. We will supply you all the detail installation drawings for your reference.
3. Our engineers also supply door to door installation service.
