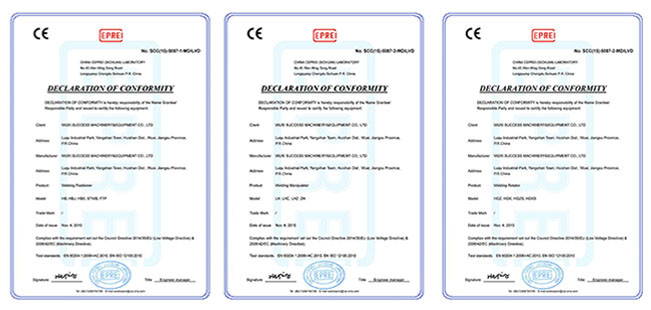

| Certification : | ISO / CE / CO |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 3 Sets Per Month |
| Delivery Time : | 25 Days |

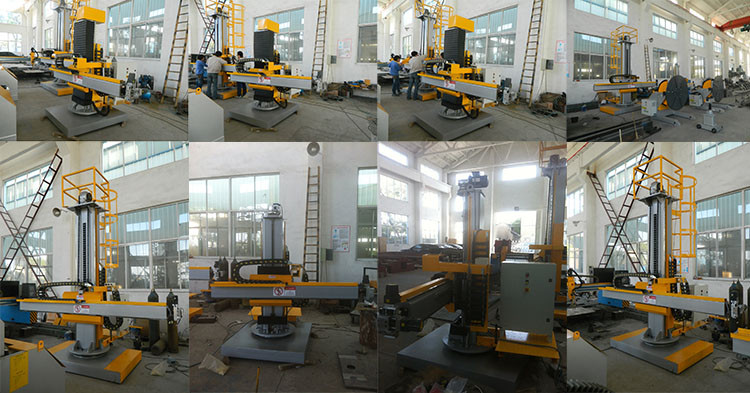

VFD Automatic Tank Welding Manipulators For Straight Seam / Circle Seam Welding
Welding Manipulator Description
1. Beam up / down by motor.
2. Beam ahead / back by motor (The speed may adjust by VFD).
3. Column revolved by motor / hand column fixed on the ground.
4. Trolley move by motor.
5. You may choose : Cross slide by motor / hand,Oscillator,Flux recovery Machine and transportation system,Welding power etc..
Here Below Is Welding Manipulators Specifications
Model | LHC-1515 | LHC-3040 | LHC-4050 | LHC-5060 |
Effective Vertical Lifting Stroke of Boom (mm) | 1500 | 3000 | 4000 | 5000 |
Effective Horizontal Retracting Stroke of Boom (mm) | 1500 | 4000 | 5000 | 6000 |
Boom Lifting speed (mm/min) | 1 | |||
Boom Retracting speed (mm/min) | 0.12-1.2 | |||
Column Rotation Angle (°) | □ Stationary □ ±180° | |||
Column Rotation Way (rpm) | □ Stationary □ Manual □ Motorized(0.1) | |||
Trolley Traveling Way (mm/min) | □ Stationary □ Manual □ Motorized(1.5/3) | |||
Option : | □ Seam Tracker □ Flux recovery machine | |||
Welding Source □ Chinese □ Lincoln Brand | ||||
Welding Manipulator Productive Process
1. Cross-tuning system with motorized slide can realize welding torch in three-dimensional adjust,which satisfy welding torch adjust for welding longitudinal and circle seam,200mm adjust range can make the easy operation.
2. Control roller has eccentric shaft, which can decrease clearance between roller and rail.
3. Column boom manipulator adopts a total-sealing oil immersion lubricating mode to help keep off dust, slag, and many other impurities.
4. Control box includes control box and pendant ,interface with positioner and rotator also prepared.
Cross Column And Boom Welding Manipulator Feature
1. Auxiliary welding manipulator for auto welding center.
2. Automatic welding column boom can be adopted with various welding power.
3. Stretching of cross boom adapts AC frequency converter stepless speed control.
4. Head equipped with electric cross slides, can adjust position of welding .
5. Chain break-resistant and anti-slip device in boom to guarantee safety.
6. Braking device can ensure column work in safe environment.
7. Automatic flux feeding, recovering devices, wire feeder device, working platform and chair ( Optional ).
After-sale service For Welding Manipulators
1. We provide 12 months quality warranty after dispatch, and some easy abrasion spares of equipment
for free. We also provide a long term free technical advisory services and technical consults service.
2. We can also provide installation and training if needed.
When you send us the inquiry, please advise us your single tank diameter and length.
|
|
