Welding Turn Table Positioner With 3 Jaws Welding Chuck 2 Direction 90° Tilting
Welding Turn Table Positioner Brife Info
1. Pipe Diameter : 50 - 300 mm
2. Voltage : 110V - 600V 50 / 60Hz all available
3. Package : Wooden Case
4. Delivery Time : 7 Days
Welding Turn Table Description
1. The worktable could be rotating 360°and tilting 90°to allow work
piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and
motor-driven speed regulation by tilting from which customers can
choose in line with operational requirements.
3. Can help for all types of manual welding and auto-welding.
4. Controlled by step-less frequency conversion.
5. If work piece is longer or irregular shape, larger specification is more suitable due to eccentricity and gravity center.
Welding Turn Table Specifications
Model | HBJ-03 | HBJ-06 | HBJ-12 | HBJ-30 | HBJ-50 |
Max Capacity | 300 kg | 600 kg | 1.2 T | 3 T | 5 T |
Table Diameter (mm) | 600 | 1000 | 1200 | 1400 | 1500 |
Rotation Power (kw) | 0.37 | 0.75 | 1.1 | 1.5 | 3 |
Rotation Speed (rpm) | 0.1-1 | 0.09-0.9 | 0.05-0.5 | ||
Tilting Power (kw) | / | 0.75 | 1.5 | 2.2 | 3 |
Tilting Angle (°) | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 |
Tilting Speed (kw) | Manual | 1.1 | 0.67 | 0.23 | 0.14 |
Option: | □ Foot Pedal □ Wireless Control □ Tilting Angle 120° | ||||
Welding Turn Table Competitive Advantage
1. It’s easy to control with electric cabinet and hand control panel
2. Sand blasting treatment to main welding parts before painting
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

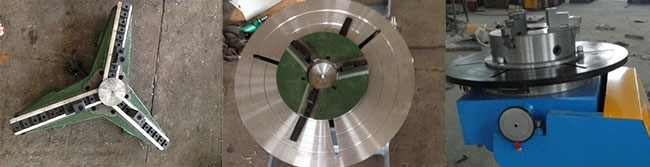

Welding Turn Table Clamps for reference
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.

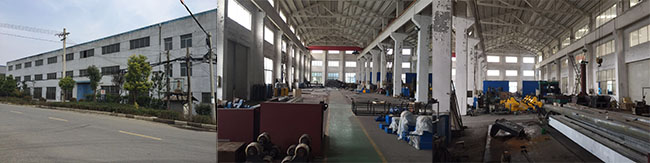

Certificate and Company Work Shop
1. All our equipments have passed CE test and get the CE certificates. So it's ok to export the European.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
Door to door delivery is available.
