| Brand Name : | Weldsuccess |
| Model Number : | HGK - 160 |
| Certification : | ISO / CE / CO |
| Price : | Negotiation |
| Payment Terms : | T/T, L/C, D/P, Western Union |
| Supply Ability : | 5 Sets Per Month |
| Delivery Time : | 20 Days |

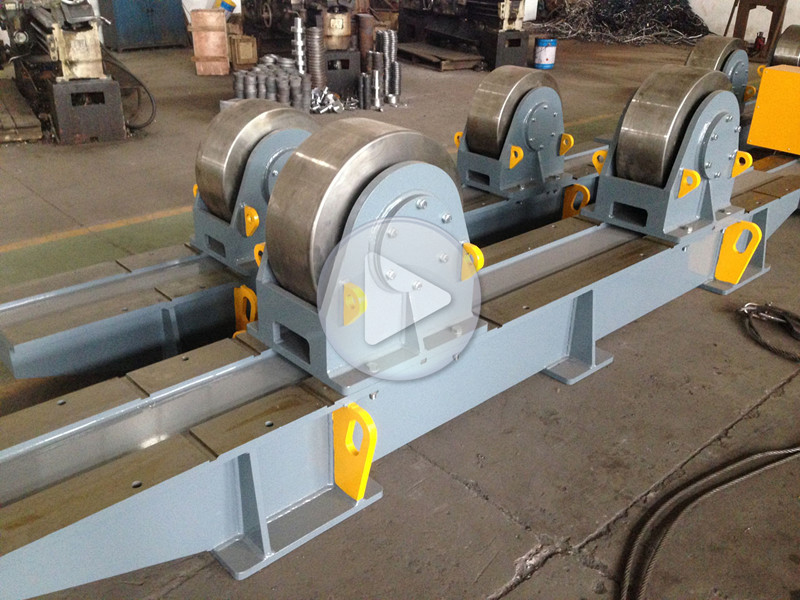

160t Bolt Adjustment Heavy Duty Pipe Roller Stands Foot Pedal Control More products pics.pdf
Pipe Weding Rotator Description
1. Package : One powered roller / one idler roller / Electric
Control System
2. Voltage : 380V 50Hz 3P to Thailand market.
3. Roller : Solid Metal. One powered rolls with two idlers rolls
for 20M length tanks.
4. Original : Factory , Wuxi China
5. Condition : New
Pipe Welding Rotator Detail Parameters
Model | HGK-80 | HGK-100 | HGK-200 | HGK-300 | HGK-500 |
Max Capacity | 80 T | 100 T | 200 T | 300 T | 500 T |
Roller Diameter (mm) | 450 | 500 | 700 | 800 | 900 |
Roller Width (mm) | 220 | 280 | 300 | ||
Working Range (mm) | 800-5000 | 1000-6000 | 1000-8000 | ||
Roller Speed (mm/min) | 1-1000 | ||||
Motor Power (kw) | 2*2.2 | 2*3 | 2*4 | 2*5.5 | 2*7.5 |
Option : | □ Bolt Adjustment □ Lead Screw Adjustment | ||||
Pipe Welding Rotator Application
1. Pressure vessel;
2. Pipe manufacturing industries
3. Wind power fabrication
4. Chemical & fuel storage tank fabrication
5. Any heavy cylindrical job
5. For Welding, Polishing, Positioning, etc
Pipe Welding Rotator Details parts brand
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor with fully CE certificates
3. Cable / Shuntian Reducer is made in China
4. Schneider / Siemens electric system
5. Voltage is 380V 50Hz 3P , or reset as your required
6. All the equipments with one year warranty
Pipe Welding Rotator Transportation
1. Firstly , all of our equipments will be packaged in wooden case before delivery.
2. Door to door delivery service is also available , but we have to know your detail address.
3. Seaway is the most common transportation way for oversea trading.
4. Depends on your location, combined transport by rail and sea is also an option.
5. Certainly railway transportation is also acceptable if it is the
most suitable approach.
After sale service
1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
