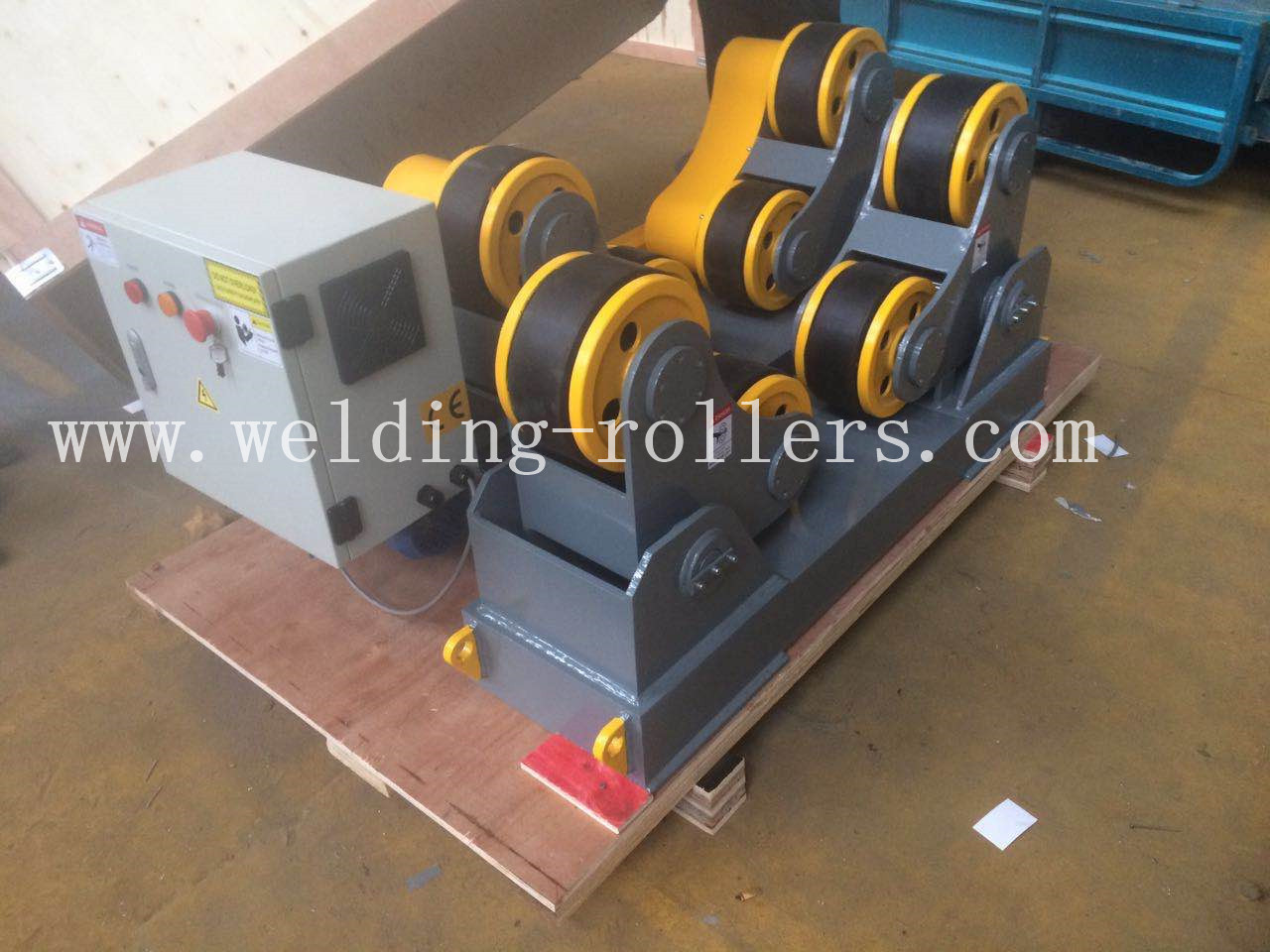

2.2KW Steel Self Aligning Tank Turning Rolls Welding Machine For Pressure Vessls Welding
30T Tank Turning Rolls
1.One drive & one idler are packaged together in the wooden case
.Remote hand control & foot pedal control.
4.Adjust the pipe diameter automatically
4.Stepless adjustable speed of the driven part.
5.Drive rotation speed in digital readout.
6.Top-class electronic components from Schneider.
7.100% new from original manufacturer
Pipe Welding Roll Usage
self-alignment/self centering type. These welding rotators are used for rotating piping fitting,Stainless Steel Tank Polishing, ,turning roller painting and tank turning rolls assembly of cylindrical roller shell.
Tank Turning Rolls Specification
| Model | HGZ - 10 | HGK - 20 | HGK - 30 | HGK - 40 | HGK - 50 | ||
| Max Capacity | 10 T | 20 T | 30 T | 40 T | 50 T | ||
| Roller Diameter (mm) | 300 | 350 | 350 | 400 | 400 | ||
| Roller Width (mm) | 170 | 180 | 180 | 200 | 200 | ||
| Working Range (mm) | 320-2800 | 500-3500 | 530-3700 | 600-4200 | 700-4500 | ||
| Roller Speed (mm/min) | 100 - 1000mm/min VFD | ||||||
| Motor Power (kw) | 1.1 | 1.5 | 2.2 | 2 * 1.1 | 2 * 1.5 | ||
Details Parts Brands
Our Tank Turnining Rolls Inverter is from Danfoss / Yaskawa
Our welding rotator Motor is from Invertek
Our Welding Rollers Reducer is from China brand
Our welding Electric system is from Schneider
Details images
Tank Turning Rolls Application
| 1. Pressure vessels |
| 2. Pipe manufacturing industries |
| 3. Wind power fabrication |
| 4. Chemical & fuel storage tank fabrication |
| 5. Any heavy cylindrical job |
After sale service
| 1. If only tank turning rolls,will be very easy installation by yourself according to our work manual. |
| 2. During the installation,if have any problems we can give you a timely help online. |
| 3. Installation service at your site also available.We can arrange our engineer there. |
| 4. Here below is 5x5 Column Boom and Self aligning welding rotator installation by our customer himself. |
Installation
1. Normally all our tank turning rolls shipped with fully installation.
2. It's easy to installate following our detail drawings supported.
3. We also supply door to door installation service, but need customer to pay the out and back flight .
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
|
|
