80T Conventional Tank Turnining Rolls For Pipe Butt Welding , Pipe Welding Stands CE
80T pipe welding rotator
1.Consist:One drive & one idler ,with two motor
2.Control systom:Remote hand control & foot pedal control .
3.Working vessel:Bolt adjustment to fit vessel diameter from 800-5000mm
4.Stepless adjustable speed of the driven part.
5.Drive rotation speed is in digital readout.
6.Top-class electronic components from Schneider.
7.100% new from original manufacturer
8.CE cetificate supported
Pipe Welding Roll Usage
1. Medium range series has been engineered for the effective positioning of long cylindrical work-pieces. 2. Oil tanks, pressure vessels, and pipe are applications that utilize turning rolls.
3. Long objects that are not cylindrical may be adapted with the aid of custom designed support rings.
4. We design incorporates overload discs on each wheel that prevent excessive loads from damaging the tires.
Specification
| Model | HGK -50 | HGK - 60 | HGK - 80 | HGK - 100 | HGK - 200 | ||
| Max Capacity | 50 T | 60 T | 80 T | 100 T | 200 T | ||
| Roller Diameter (mm) | 400 | 450 | 470 | 500 | 700 | ||
| Roller Width (mm) | 200 | 220 | 250 | 280 | 300 | ||
| Working Range (mm) | 500-5000 | 500-5000 | 500-5000 | 800-5000 | 800-5000 | ||
| Roller Speed (mm/min) | 100 - 1000mm/min VFD | ||||||
| Motor Power (kw) | 2 * 2.2 | 2 * 2.2 | 2 * 3 | 2 * 3 | 2 * 4 | ||
| Option : | □ Bolt Adjustment □ Lead Screw Adjustment | ||||||
Details parts brand

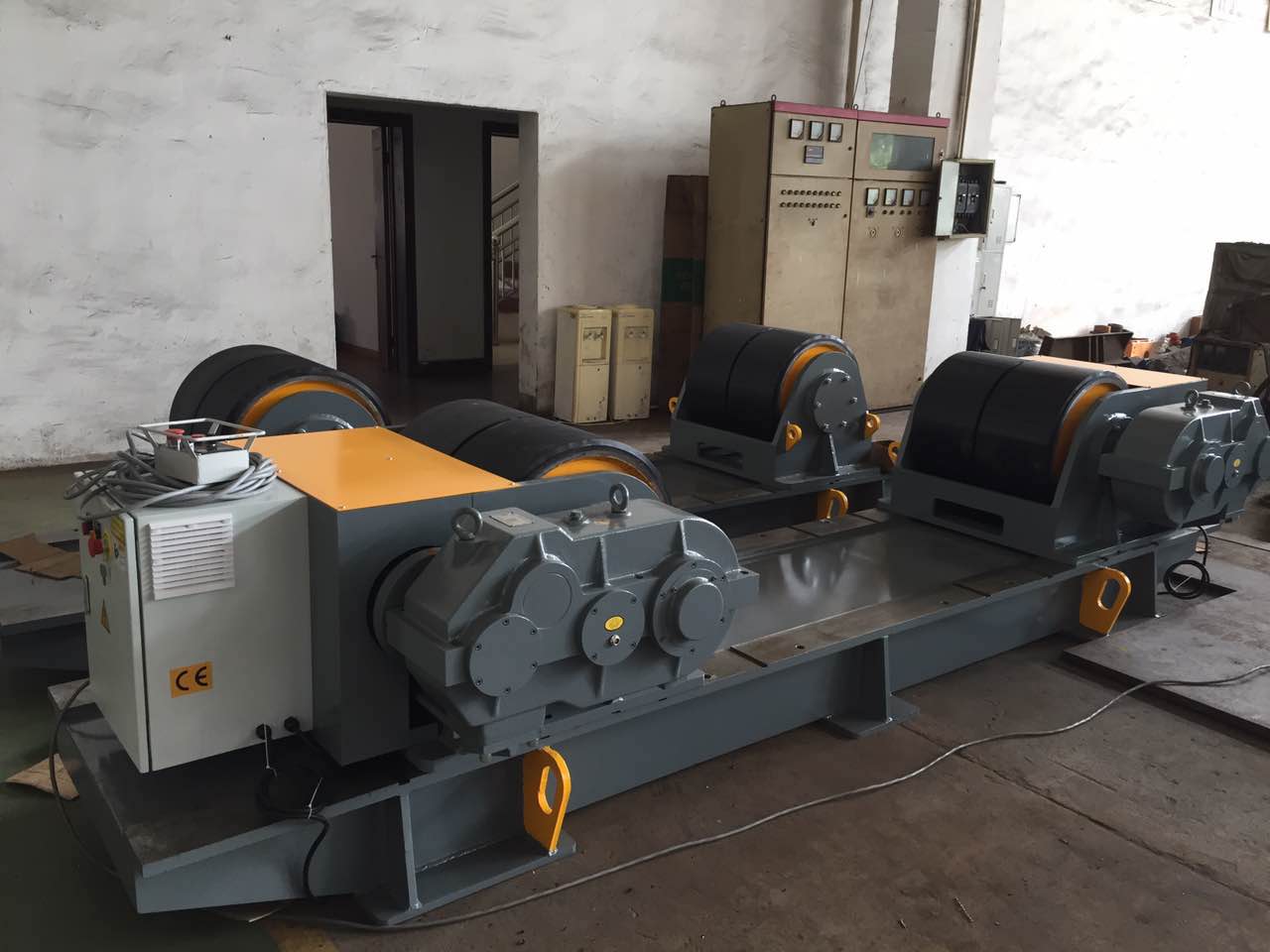

Detail image:
After sale service
1. We offer 12months guaranty period for the whole machine quality.
2. During this time,if have any issues due to the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
Installation
1. We always shipped the rotator with fully installation.
2. It's easy to installate following our detail drawings supported.
3. We also supply door to door installation service, but customer have to pay the plane tickets.
4. Some overseas market service available.
