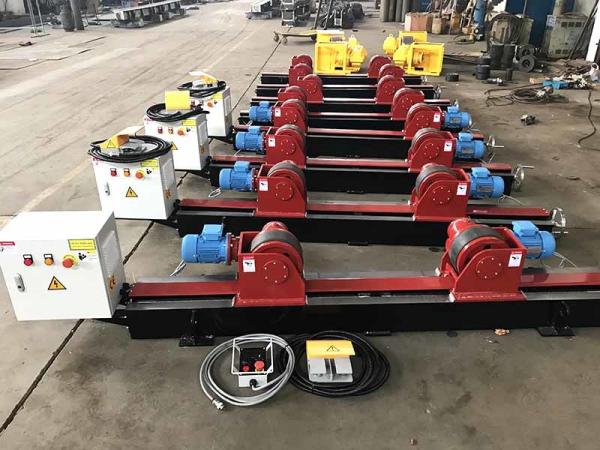

5T Welding Rotator With Manual Wheels Adjust, Conventional Tank Turning Rolls
Tank Turning Rolls Description
1. Package : One powered roller / one idler roller / Electric
Control System
2. Voltage : 110V - 600V 50 / 60 Hz 1P / 3P
3. Roller : Rubber / Steel / PU (Polyurethane)
4. Manual Moving Wheels on the rails
5. Original : Our Factory , Wuxi China
6. Condition : New / Fully CE supported
7. Tank turning rolls from Wuxi Success Machinery Equipment Co., Ltd
Attention More
1. Normally under 60 T model we use the Rubber material rollers ,
upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU
rollers.
3. Self-aligning tank turning rolls / Bolt adjsutment / Lead Screw
adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1
powered with 2 idlers to support.
Lead Screw Conventional Tank Turning Rolls Parameter
Model | HGK - 5 | HGK - 10 | HGK - 20 | HGK - 30 | HGK - 40 | ||
Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T | ||
Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 | ||
Roller Width (mm) | 140 | 170 | 180 | 180 | 200 | ||
Working Range (mm) | 250-2800 | 300-3200 | 500-4500 | 500-4500 | 500-4800 | ||
Roller Speed (mm/min) | 1 - 1000 | ||||||
Motor Power (kw) | 2 * 0.37 | 2 * 0.55 | 2 * 1.1 | 2 * 1.5 | 2 * 1.5 | ||
Option : | □ Bolt Adjustment □ Lead Screw Adjustment | ||||||
Other types option
1. We also supply the self-alignment, the vehicle used, the tilting
and the anti-drift types.
2. Bolt adjustable tank turning rolls can adjust the center
distance by reserved screw holes. So as to adapt to various
diameter work piece.
3. Lead screw adjustable tank turning rolls is also available.
4. The roller is mainly used for welding & assembling of pressure
vessel.
5. Shot blasting used, painting used tank turning rolls is also
available.
6. It also can assembly and weld together with other tooling for
the cone inequality diameter rotary.
Details Parts Brand On Our Tank Turning Rolls Beds
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor
3. Cable / Shuntian Reducer
4. Schneider / Siemens electric system
Transportation
1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the
most suitable approach.
After sale service
1. We provide 12month guaranty period for the whole tank turning rolls quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
Installation
1. Normally the tank turning rolls shipped with fully installation.
2. It's easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
|
