100T Conventional Vessels Rotators With PU Wheels At Stock
Conventional Vessels / Pipe Welding Rotator PU Wheels,Tank Welding Roller Stands
Pipe Welding Rotator Details Info
1. Conventional vessels rotators,100T conventional pipe welding rotator.
2. Load capacity 100 Ton. Drive unit 50 Ton, idler unit 50 Ton.
3. Vessels diameter ranges 800~5000 mm.
4. Turning speed 100~1000 mm/min in gidital speed readout.
5. Voltage: 380V 50Hz 3 Phase or as per request.
6. PU roller wheels to ensure long time using life.
Tank Turning Rolls / Pipe Welding Rotator Specification
| Model | HGK-80 | HGK-100 | HGK-200 | HGK-300 | HGK-500 |
| Max Capacity | 80 T | 100 T | 200 T | 300 T | 500 T |
| Roller Diameter (mm) | 450 | 500 | 700 | 800 | 900 |
| Roller Width (mm) | 220*2 | 220*2 | 300*2 | ||
| Working Range (mm) | 800-5000 | 1000-6000 | 1000-8000 | ||
| Roller Speed (mm/min) | 1-1000 | ||||
| Motor Power (kw) | 2*2.2 | 2*3 | 2*4 | 2*5.5 | 2*7.5 |
| Option : | □ Bolt Adjustment □ Lead Screw Adjustment | ||||
Noted: 100 T conventional welding rotators from Wuxi Success Machinery Equipment Co., Ltd
Pipe Welding Rotator Details Control System And Brand
1. Inverter is from Taida/Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Conventional Pipe Welding Rotator Application
1. For pressure vessels seam welding.
2. For oil tanks seam welding.
3. For heat exchanger seam welding.
4. Pipe support turning and seam welding.
Pipe Welding Rotator Stands Advantages
1. Double pieces wheels with large width to avoid impress damage of the tanks.
2. Fully protection cover of the motor to avoid motor damage by accident.
3. European standard degign of the electric box control system.
4. Overseas agent available to ensure you the after sales service.
5. Details work manual with pictures induction of machine operation.
Installation and after sales aervice
1. If only pipe welding rotator,will be very easy installation by yourself according to our work manual.
2. During the installation,if have any problems we can give you a timely help online.
3. Installation service at your site also available.We can arrange our engineer there.
4. Here below is 5x5 Column Boom and Self aligning welding rotator installation by our customer himself.

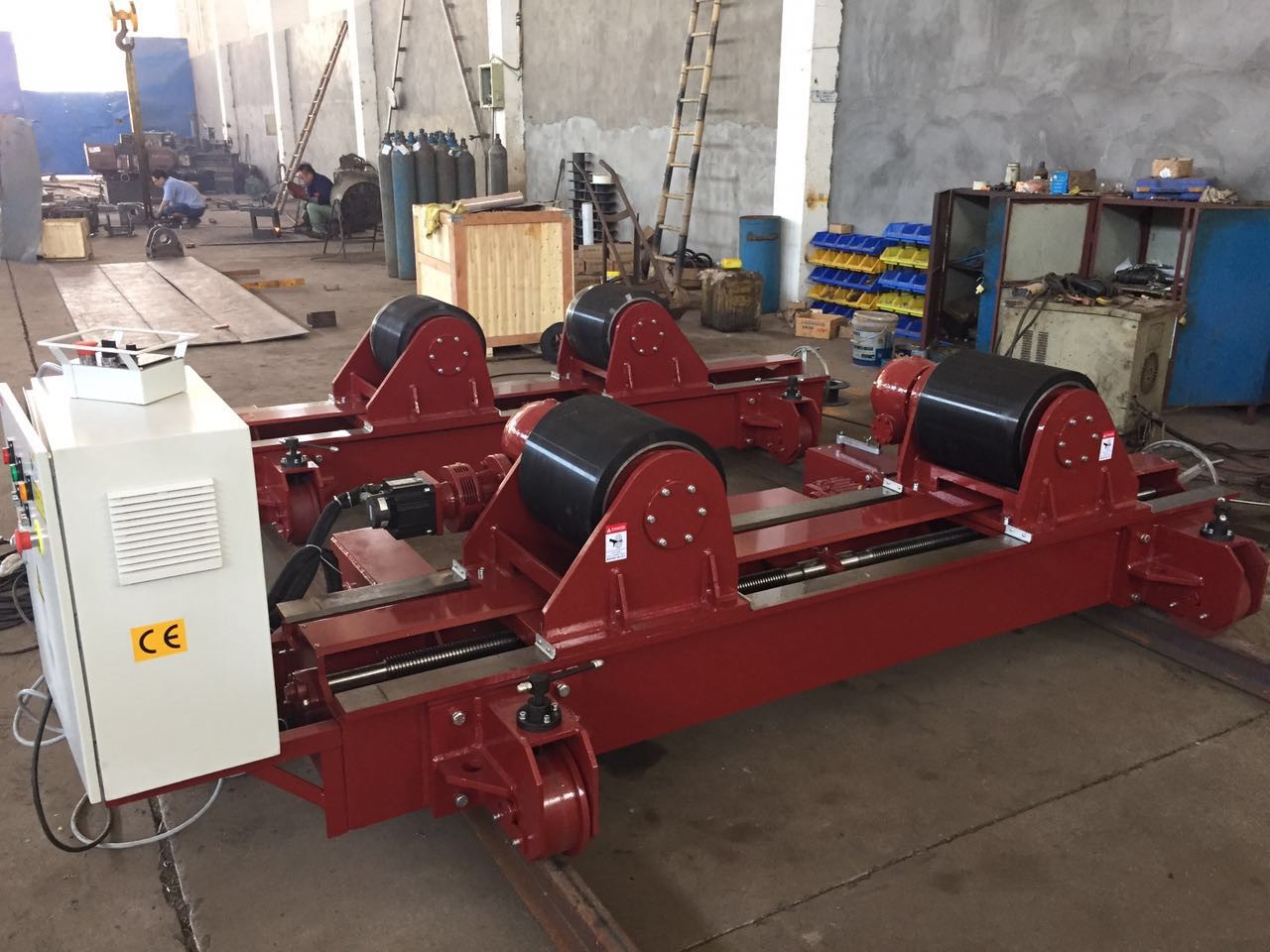

Movable Bolt Adjustment Conventional Pipe Welding Rotator.
|
|
