80 Ton Wind Tower welding Tank Turning Rolls ,PU Wheel Pipe Welding Rotator
Conventional Tank Turning Rolls Details info
1. One drive roller & one idler roller package together as one set tank turning rolls.
2. Load capacity 80 Ton for one drive & one idler. If one drive & two idlers can be load 120 Ton.
3. Vessels diameter in 800~5000mm adjust by bolt.
4. Rotation turning speed in 100~1000 mm/min via VFD control.
5. Turning speed in digital readout on remote hand cotrol box.
6. Motorized traveling base frame is also available for longer pipe butt welding.
Tank Turning Rolls / Pipe Welding Rollers Specification
| Model | HGK-80 | HGK-100 | HGK-200 | HGK-300 | HGK-500 |
| Max Capacity | 80 T | 100 T | 200 T | 300 T | 500 T |
| Roller Diameter (mm) | 450 | 500 | 700 | 800 | 900 |
| Roller Width (mm) | 220*2 | 220*2 | 300*2 | ||
| Working Range (mm) | 800-5000 | 1000-6000 | 1000-8000 | ||
| Roller Speed (mm/min) | 1-1000 | ||||
| Motor Power (kw) | 2*2.2 | 2*3 | 2*4 | 2*5.5 | 2*7.5 |
| Option : | □ Bolt Adjustment □ Lead Screw Adjustment | ||||
Bolt Adjustment Conventional Tank Turning Rolls Advantages
1. Double pieces wheels with large width to avoid impress damage of the tanks.
2. Fully protection cover of the motor to avoid motor damage by accident.
3. European standard degign of the electric box control system.
4. Overseas agent available to ensure you the after sales service.
5. Details work manual with pictures induction of machine operation.
Application:

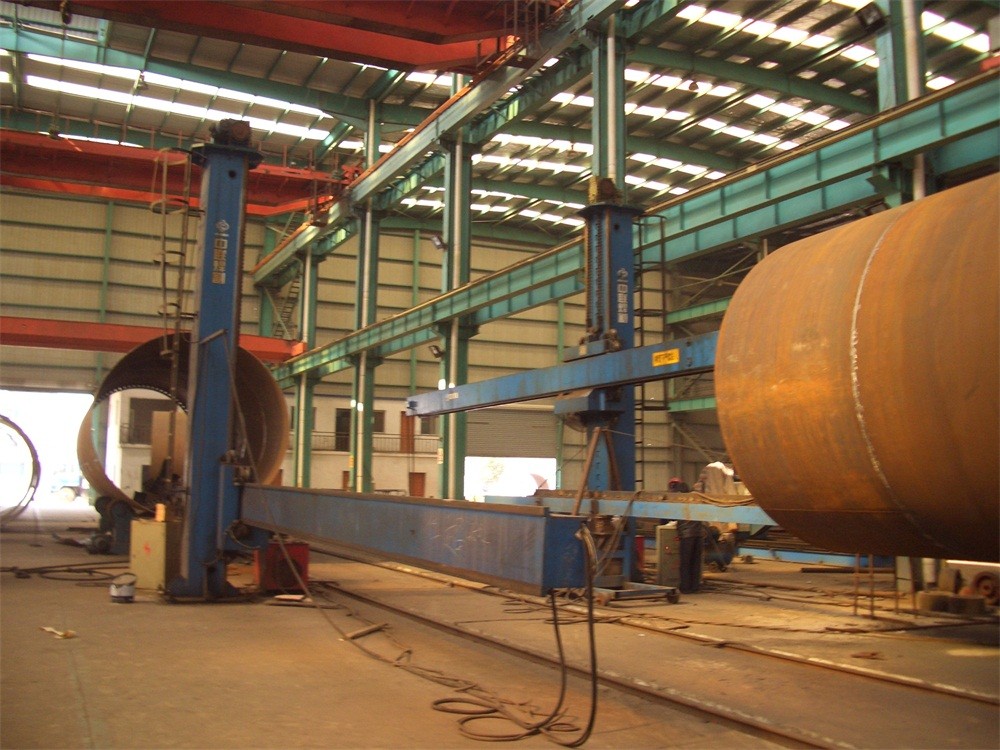

Workshop site
|
|
