Bolt Adjustment 20 Ton Conventional Tank Turning Rolls With 2*1.1 KW Double Motor
Tank turning rolls Function
1. It is mainly used in switching position of cylinder work piece, to get the ideal welding position and speed.
2. It usually work matching with the manipulator and welding machines to form the auto-welding system.
3. It also can be used in manual welding, assembling, polishing and crack-defection, etc.
Tank turning roll Detail information
1. Rollers mainly consist of power unit, idler unit, electric control box and hand control panel.
2. Tank turning rolls are used for the inside and outside circumferential and longitudinal welding.
3. 20% overweight design, could making the rotator focus more.
4. Each motors and Reducers have cover, careful design, ensure the SAFETY.
5. All the parts using well-known brands in China or other countries. Quality is reliable.
6. Speed control: Variable Frequency Drive (VFD)
Details Specification
| Model | HGK - 5 | HGK - 10 | HGK - 20 | HGK - 30 | HGK - 40 | ||
| Max Capacity | 5 T | 10 T | 20 T | 30 T | 40 T | ||
| Roller Diameter (mm) | 250 | 300 | 350 | 350 | 400 | ||
| Roller Width (mm) | 140 | 170 | 180 | 180 | 200 | ||
| Working Range (mm) | 250-2800 | 300-3200 | 500-4500 | 500-4500 | 500-4800 | ||
| Roller Speed (mm/min) | 1 - 1000 | ||||||
| Motor Power (kw) | 2 * 0.37 | 2 * 0.55 | 2 * 1.1 | 2 * 1.5 | 2 * 1.5 | ||
Tank turning rolls Option
1. Polyurethane roller, Rubber Roller or steel roller.
2. Anti creep function.
3. Hydraulic lifting for fit up pipes;
4. Automatic traveling or Manual traveling on the rail.
5. Customization
More Products Ranges
1. The tank turning rolls series includes the self-alignment, bolt adjustable, fit up and the anti-drift types.
2. This conventional welding tank turning rolls is used to weld, polish and assemble the cylinder-shells, and to line the shells with rubber.
3. It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter, and the linear velocity is displayed by the digital.
4. It has advantages of stepless speed adjust, low noise transmission and stable turning under the welding parameter in the range. We also can design and customize various types of the tank turning rolls in accordance with the customers requirement.
Deliver time and service
1. Normally one set tank turning rolls in 20 days for delivery.
2. Package in wooden case for safety delivery.
3. All the detials work manual and certificates are all supported.
4. Installation service at your work shop site is available.
5. Door to door delivery supported.
6. Please send email to Wuxi Success Machinery Equipment Co., Ltd for tank welding rolls.

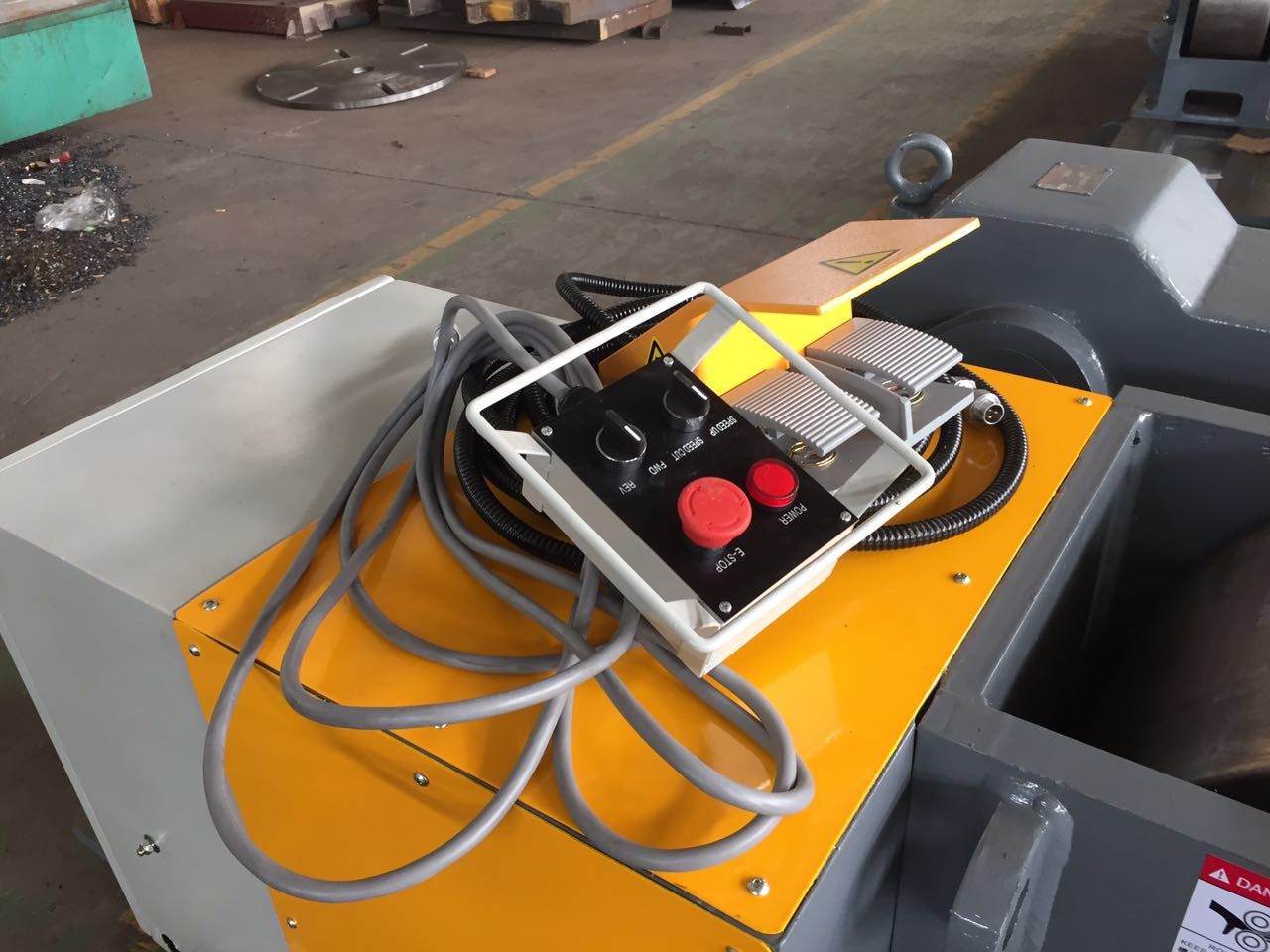

Remote Hand Control & Foot pedal Control
|
|
